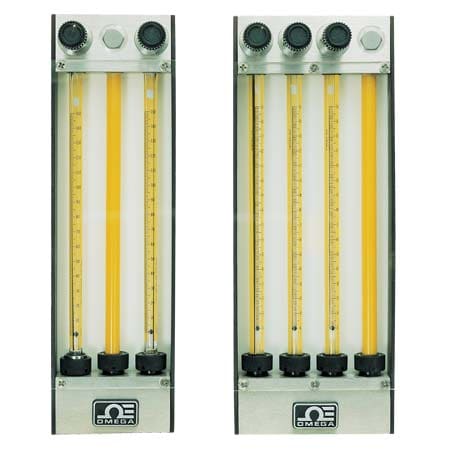

Multi-tube and Gas Proportioning Variable Area Flow Meters
Regular price
$1,574.81
Excl GST: $1,431.65
Excl GST: $1,431.65
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:FL1GP-8GP-Series
The FL1GP-8GP Series are used to blend two or three gases in homogeneous infinitely variable concentrations directly at the end use point.
Couldn't load pickup availability
- Description
- Download Brochures
To blend two or three gases in homogeneous infinitely variable concentrations, directly at the end use point, these rotameters are unsurpassed in convenience and economy. Gas proportioning rotameters pay for themselves in a short period of time since their use eliminates the need for expensive custom blended gas mixtures from outside sources. this series of rotameters lend flexibility and economy to the efficient utilization of component gas cylinders and piped in supply lines. Another significant advantage in laboratory use is the freedom to reproducibly increase or decrease concentrations during the course of an experiment.
The flowrates of component gases are not affected by downstream pressure variations as long as back pressures do not exceed or approach the input pressure.
The flowrates of component gases are not affected by downstream pressure variations as long as back pressures do not exceed or approach the input pressure.
| 150 mm Flowtube, Gas Flow Capacities of Routine Gases Ranges in cc/min, flowtubes have 10:1 range | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Float Materials: G = black glass SA = sapphire ST = 316 SS C = carboloy SPECIFICATIONS Accuracy: ±2% FS, from 10% to 100% of scale Repeatability: ±0.25% FS Max Pressure: 200 psig Scaled Pressure: 50 psig Max Temperature: 250°F (180°F for water) Flow Tube: Borosilicate glass End Fittings: Black and anodized aluminum or 316 SS Packing and O-Rings: Buna in aluminum models, FKM -A in 316 SS models Side Panels: Black anodized aluminum Connections: 1/8 FNPT |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
×
