Model PHP Pneumatic Hand Pump

Model PHP Pneumatic Hand Pump

Taxes included. Shipping calculated at checkout.

SKU :

ModelPHP

Calibration needed?

Hand Pump

Generates Pressures up to 45 psig (3 bar), Single Hand Operation

View full details
  • Description
  • Download Brochures

Generates Pressures up to 600 psi (40 bar), Portable

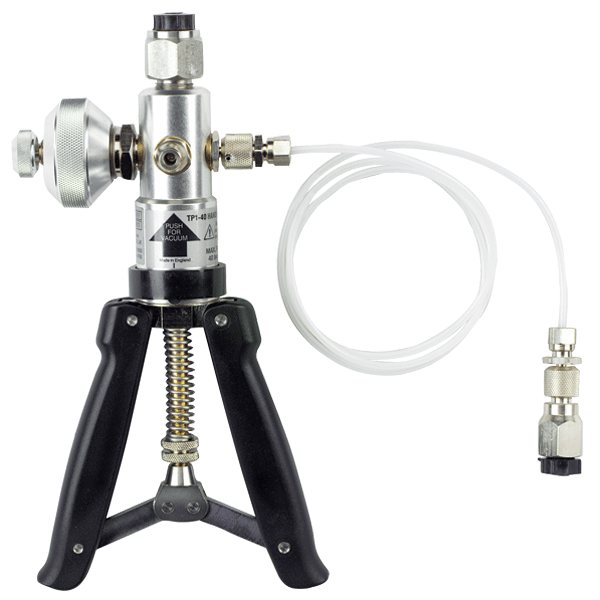

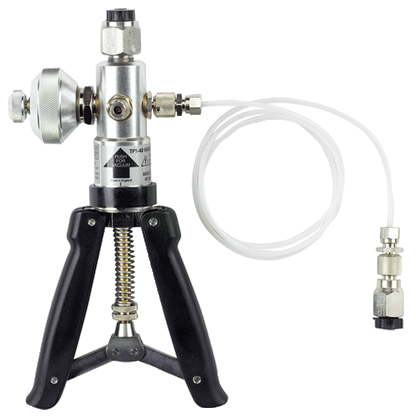

Verify calibration of pressure transmitters, switches, controllers, indicators, and recorders with Model PHP Pneumatic Hand Pump. The Model PHP is a hand operated pump for sourcing pressure and vacuum. Use in conjunction with an analog or digital gage for a complete calibration system.

The unit provides output pressures up to 600 psi (40 bar) or vacuum down to -28.5" Hg (-0.960 bar). The reliable pump reaches 100 psi in 4 strokes. Model PHP is fitted with a fine adjustment valve for precise volume control and an adjustable stroke to provide over pressure protection.

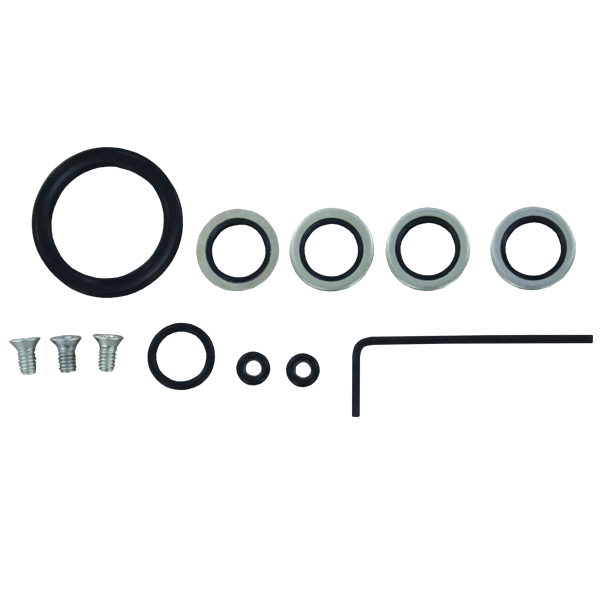

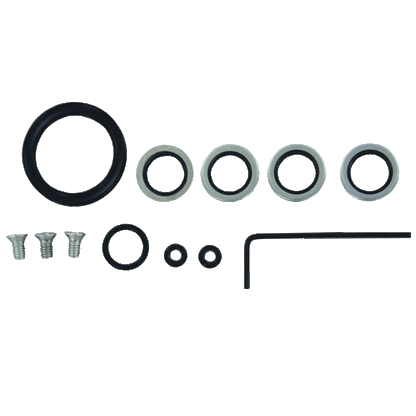

Model PHP includes a 39" (1 m) hose with a 1/4" female NPT quick fit connector. The optional service kit includes seals, O-rings, retaining screws and an Allen key.
