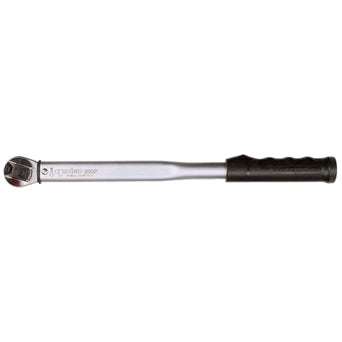

Model 200 P 1/2" 'Automotive' ratchet
SKU :
SKU:11140
P' Type Torque Wrenches are designed for the production environment where they will be set and then dedicated to a particular application. There is no scale, the wrench must be set against a torque testing device such as Norbar's Professional Torque Tester. The reversible ratchets on these models are designed with compact dimensions and a narrow engagement angle resulting from the 72 tooth pattern. These features make the wrench ideal for use in the combined spaces of modern motor vehicles and many other applications.
- Description
- Features
The Norbar Model 200 P 1/2" Automotive Ratchet is a heavy-duty tool designed for high-torque automotive applications. With a length of 466 mm and a square drive size of 1/2", it offers a torque radius of 218.6 mm. The ratchet features 72 teeth, providing a 5° engagement angle. It operates within a torque range of 40.0 to 200.0 N·m (30.0 to 150.0 lbf·ft) and has an accuracy of ±3%.
Key Features:
Reversible ratchet mechanism for versatility
Longer handle for increased leverage
72-tooth ratchet providing a 5° engagement angle
Torque range: 40.0 to 200.0 N·m (30.0 to 150.0 lbf·ft)
Accuracy: ±3%
- Setting system is designed to discourage unauthorised alteration.
- Coloured end seals are provided to identify the wrench to a particular operator, torque setting or calibration period.
- Available with a high quality ratchet or as a 'Torque Handle'.
