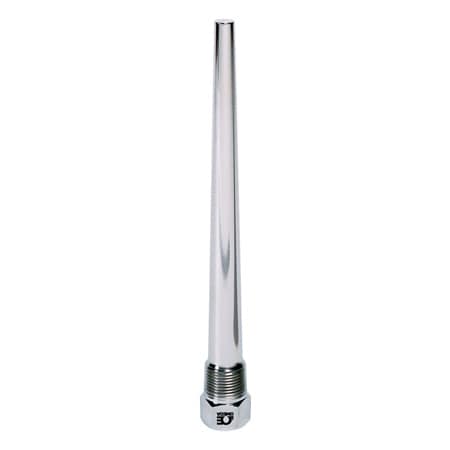

Metric Threaded Thermowells for Metric Elements

$148.87
Excl GST: $135.34
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

SERIES-BSP-7MM

Calibration needed?
Threaded thermowells are available in straight, step down, & tapered shanks. Imperial versions available. Click here to shop all metric thermowells.
View full details
  • Description
  • Download Brochures


BSP Thread for Tapered or Straight Wells
External Thread Model No. Insertion Length 'U'
1/2' BSP 1/2 BSP-7MM-S-U21/2-316SS 63.5 mm(2 1/2')
1/2' BSP 1/2 BSP-7MM-S-U41/2-316SS 114.3 mm (4 1/2')
1/2' BSP 1/2 BSP-7MM-S-U71/2-316SS 190.5 mm (7 1/2')
1/2' BSP 1/2 BSP-7MM-S-U101/2-316SS 266.7 mm(10 1/2')
1/2' BSP 1/2 BSP-7MM-S-U140MM-316SS 140 mm
1/2' BSP 1/2 BSP-7MM-S-U200MM-316SS 200 mm
1/2' BSP 1/2 BSP-7MM-S-U260MM-316SS 260 mm
3/4' BSP 3/4 BSP-7MM-S-U21/2-316SS 63.5 mm(2 1/2')
3/4' BSP 3/4 BSP-7MM-S-U41/2-316SS 114.3 mm (4 1/2')
3/4' BSP 3/4 BSP-7MM-S-U71/2-316SS 190.5 mm (7 1/2')
3/4' BSP 3/4 BSP-7MM-S-U101/2-316SS 266.7 mm(10 1/2')
3/4' BSP 3/4 BSP-7MM-S-U140MM-316SS 140 mm
3/4' BSP 3/4 BSP-7MM-S-U200MM-316SS 200 mm
3/4' BSP 3/4 BSP-7MM-S-U260MM-316SS 260 mm

NPT Thread for Tapered or Straight Wells
External Thread Model No. Insertion Length 'U'
1/2' NPT 1/2 -7MM-S-U21/2-316SS 63.5 mm(2 1/2')
1/2' NPT 1/2 -7MM-S-U41/2-316SS 114.3 mm(4 1/2')
1/2' NPT 1/2 -7MM-S-U71/2-316SS 190.5mm(7 1/2')
1/2' NPT 1/2 -7MM-S-U101/2-316SS 266.7mm(10 1/2')
1/2' NPT 1/2 -7MM-S-U140MM-316SS 140 mm
1/2' NPT 1/2 -7MM-S-U200MM-316SS 200 mm
1/2' NPT 1/2 -7MM-S-U260MM-316SS 260 mm
3/4' NPT 3/4 -7MM-S-U21/2-316SS 63.5 mm(2 1/2')
3/4' NPT 3/4 -7MM-S-U41/2-316SS 114.3 mm(4 1/2')
3/4' NPT 3/4 -7MM-S-U71/2-316SS 190.5 mm(7 1/2')
3/4' NPT 3/4 -7MM-S-U101/2-316SS 266.7 mm(10 1/2')
3/4' NPT 3/4 -7MM-S-U140MM-316SS 140 mm
3/4' NPT 3/4 -7MM-S-U200MM-316SS 200 mm
3/4' NPT 3/4 -7MM-S-U260MM-316SS 260 mm
1' NPT 1-7MM-S-U21/2-316SS 63.5 mm(2 1/2')
1' NPT 1-7MM-S-U41/2-316SS 114.3 mm(4 1/2')
1' NPT 1-7MM-S-U71/2-316SS 190.5 mm(7 1/2')
1' NPT 1-7MM-S-U101/2-316SS 266.7 mm(10 1/2')
1' NPT 1-7MM-S-U140MM-316SS 140 mm
1' NPT 1-7MM-S-U200MM-316SS 200 mm
1' NPT 1-7MM-S-U260MM-316SS 260 mm
For tapered wells, replace '-S-' with '-H-'. Consult sales for price.
For wells with a 9 mm BORE, replace '7MM' in the part number with '9MM'. Consult sales for price.
