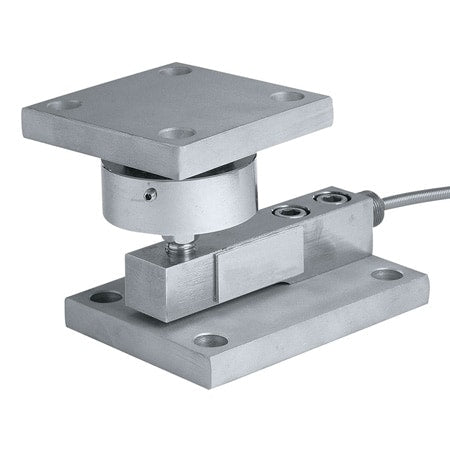

Metric Heavy Duty Weigh Assembly with Load Cell Included

$2,587.24
Excl GST: $2,352.04
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

TWAM5

Calibration needed?
The TWAM5 series are the metric version of our rugged, industrial weigh fixtures that provide self leveling and self adjusting for thermal expansion.
View full details
  • Description
  • Download Brochures
TheTWAM5 is also available in standard configurations, with 0-100 to 0-20,000 lb ranges. Please see the TWA5 for complete details, or contact our Pressure department for more information..


SPECIFICATIONS
Non-parallel Mounting: Self-adjusting for surfaces up to 2°
Thermal Expansion: Self-adjusting for up to ±1/16"
Height: Adjustable per dimension "J"
Weight: (including load cell):
100-750: 10 lb (4.5 kg)
1000-5000: 23 lb (10.5 kg)
10,000: 25 lb (11.5 kg)
20,000: 55 lb (25 kg)
5- Point Calibration (in compression): 0%, 50%, 100%, 50%, 0%
