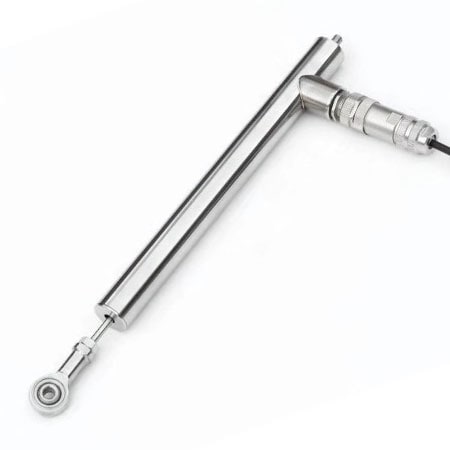

LVDT Linear Position Sensors with AC Output | NEW
Regular price
$762.00
Excl GST: $692.73
Excl GST: $692.73
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:LD320A
The LD320A series is the new version of Omega's LD320 series. Good for controlling robotics, linear servos, motion, and industrial automation.
Couldn't load pickup availability
- Description
The LD320A Series of linear displacement transducers is the perfect combination of high accuracy and ruggedness to suit most general purpose applications. Not only do these products have up to 0.25% linearity, but they are also rated IP67 with a 304 stainless steel case that is hermetically sealed.
| Range | A mm (in.) | B mm (in.) |
|---|---|---|
| -10 to 10 mm | 109 (4.29) | 12.5 (0.49) |
| -25 to 25 mm | 169 (6.65) | 29.5 (1.16) |
| -50 to 50 mm | 209 (8.23) | 55 (2.17) |
| -100 to 100 mm | 291.3 (11.5) | 125 (4.92) |
| Model | Sensitivity (mV/V/mm) @ 3Vrms, 3kHz | Output (mV) |
|---|---|---|
| LD320A-2.5 | 37 | 555 |
| LD320A-5 | 37 | 1110 |
| LD320A-7.5 | 13 | 3900 |
| LD320A-15 | 18.5 | 832.5 |
| LD320A-25 | 4 | 2400 |
| LD320A-50 | 11 | 1650 |
| LD320A-75 | 4 | 1800 |
| LD320A-100 | 11 | 990 |
×
