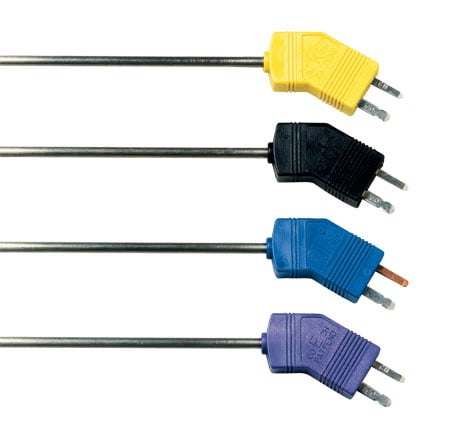

Low Noise Thermocouple Probes with Miniature Connectors

$128.64
Excl GST: $116.95
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

GJMQSS

Calibration needed?
Probes with a connector that provides a ground connection from the sheath through the miniature connector to your instrument to help reduce or eliminate electrical noise.
View full details
  • Description
  • Download Brochures
The OMEGA ® low noise thermocouple probes and connectors maintain an electrical connection from the sheath of the probe, through the connectors, all the way to your instrumentation. This system assures high accuracy measurements, providing protection against electrical noise. The external strap maintains the electrical connection of the ground wire, and also strengthens the mechanical connection between the two connectors.The female connector features a handy write-on area, for easy identification.



Standard Dimension - Miniature Quick Disconnect Probes
Alloy/ANSI
Color Code 		Sheath
Dia. in. 		Model No.
6" Length 		Model No.
12" Length
J
IRON-CONSTANTAN
304 SS Sheath 		0.040"
0.062"
0.125" 		GJMQSS-040(*)-6
GJMQSS-062(*)-6
GJMQSS-125(*)-6 		GJMQSS-040(*)-12
GJMQSS-062(*)-12
GJMQSS-125(*)-12
K
CHROMEGA™-ALOMEGA™
304 SS Sheath 		0.040"
0.062"
0.125" 		GKMQSS-040(*)-6
GKMQSS-062(*)-6
GKMQSS-125(*)-6 		GKMQSS-040(*)-12
GKMQSS-062(*)-12
GKMQSS-125(*)-12
E
CHROMEGA™-CONSTANTAN
304 SS Sheath 		0.040"
0.062"
0.125" 		GEMQSS-040(*)-6
GEMQSS-062(*)-6
GEMQSS-125(*)-6 		GEMQSS-040(*)-12
GEMQSS-062(*)-12
GEMQSS-125(*)-12
T
COPPER-CONSTANTAN
304 SS Sheath 		0.040"
0.062"
0.125" 		GTMQSS-040(*)-6
GTMQSS-062(*)-6
GTMQSS-125(*)-6 		GTMQSS-040(*)-12
GTMQSS-062(*)-12
GTMQSS-125(*)-12
* Specify junction type: G (Grounded), E (Exposed), or U (Ungrounded).


See tips on selecting the thermocouple junction.

Want to learn more about thermocouples? Go to our thermocouple tutorial page!

View the Thermocouple Accuracy and Color Code charts
