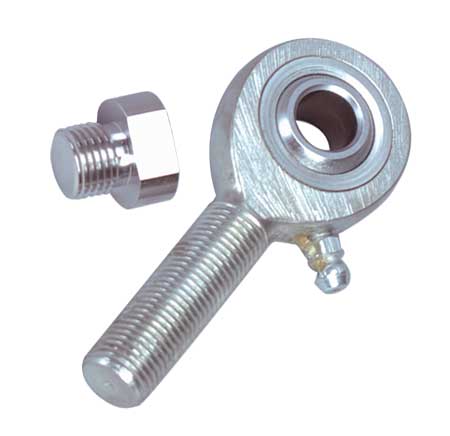

Load Buttons and Rod Ends for Metric Load Cells

$270.70
Excl GST: $246.09
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

LOAD-ACC-METRIC

Calibration needed?
Load Buttons and Rod Ends for Metric Load Cells
View full details
  • Description
  • Download Brochures

Description

LOAD CELL OPTIONS (Limited Models Only)
Temperature Compensation:
    "-TC1" Extended compensated range
    -46 to 93°C (-50 to 200°F) not exceeding operating range ..... $50
    "-TC2"-46 to 163°C (-50 to 325°F) .................................... 225

Additional cable Length:
    4 conductor PVC ................................................. $2.00/ft
    4 conductor PTFE ................................................. 4.50/ft
    6 conductor PVC .................................................. 2.75/ft
    6 conductor PTFE ................................................. 6.50/ft

Mating Connectors:
    PT06F10-6S ........................................................ $26.50
    PT06A10-6S ..........................................................18.00

Calibration/Recalibration: (standard on most models)
    "NC5" 5 point calibration ....................................... $160
    0%, 50%, 100%, 50%, 0% FS
    Extra calibration points .......................................... $25/point

Built-In Amplifiers:
    0 to 5 Vdc ........................................................... $175
    4 to 20 mA ........................................................... 195

In-Line Amplifiers: Consult Engineering


METRIC LOAD BUTTONS AND ROD ENDS
For full product specifications and dimensions click on the "SPECS" link above.
