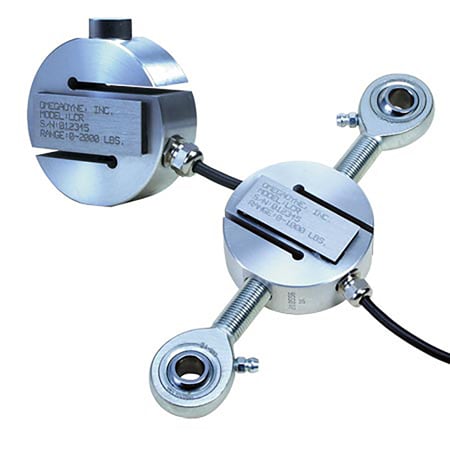

Lightweight, Aluminum S-Beam Load Cells for Industrial Use
Regular price
$1,125.94
Excl GST: $1,023.58
Excl GST: $1,023.58
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:LCR
The LCR series are aluminum to be lightweight and durable in industrial applications. They have ±0.03% linearity and a 3 mv/V output in capacities from 25 to 10,000 lbf.
Couldn't load pickup availability
- Description
- Download Brochures
SPECIFICATIONS
Excitation: 10 Vdc, 15 V max
Output: 3 mV/V ±0.25%
Calibration: 5 point in tension (0%, 50%, 100%, 50%, 0%)
Linearity: ±0.03%
Hysteresis: ±0.02%
Repeatability: ±0.01%
Creep (20 min): ±0.03%
Operating Temperature: -18 to 71°C (0 to 150°F)
Compensated Temperature: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.0027% FS/°C
Span: ±0.0015% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 ? nominal
Protection Level: IP55
Material:
?1000 lb Ranges: Aluminum
>1000 lb Ranges: 17-4 PH SS
Electrical Connection: 6 m (20')
Wiring:
Red: (+) Excitation
Black: (-) Excitation
Green: (+) Output
White: (-) Output
Excitation: 10 Vdc, 15 V max
Output: 3 mV/V ±0.25%
Calibration: 5 point in tension (0%, 50%, 100%, 50%, 0%)
Linearity: ±0.03%
Hysteresis: ±0.02%
Repeatability: ±0.01%
Creep (20 min): ±0.03%
Operating Temperature: -18 to 71°C (0 to 150°F)
Compensated Temperature: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.0027% FS/°C
Span: ±0.0015% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 ? nominal
Protection Level: IP55
Material:
?1000 lb Ranges: Aluminum
>1000 lb Ranges: 17-4 PH SS
Electrical Connection: 6 m (20')
Wiring:
Red: (+) Excitation
Black: (-) Excitation
Green: (+) Output
White: (-) Output
×
