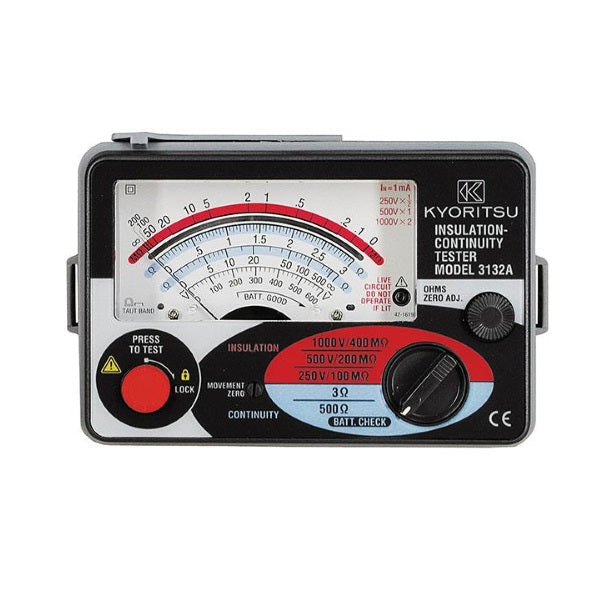

Kyoritsu 3132A Analogue Insulation / Continuity Tester

$468.16
Excl GST: $425.60
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

KYOP3132A

Calibration needed?
View full details
  • Description
  • Features

The 3132A is a rugged, analog-style insulation and continuity tester built for electricians and field maintenance professionals. It provides both insulation resistance measurement (at 100, 250, 500, 1000 V) and continuity checks with audible and visual indicators. Its simple analog dial, protective case, and robust design make it suitable for rough field use.

Key Benefits and Uses:

Insulation testing to detect breakdown or leakage paths

Continuity testing for wires, fuses, connections

Analog readout provides intuitive visualization

Durable design handles field conditions

Calibration-ready to maintain measurement integrity over time

Insulation Resistance

Test voltage 250V/500V/1000V
Measuring ranges
(Mid-scale value)		 100MΩ/200MΩ/400MΩÂ
(1MΩ) (2MΩ) (4MΩ)
Output voltage on open circuit Rated test voltage+20%, -0%
Nominal current 1mA DC min.
Output short circuit current 1 - 2mA DC
Accuracy 0.1 - 10MΩ/0.2 - 20MΩ/0.4 - 40MΩ
(Accuracy Guaranteed Ranges) ±5% of indicated value

Continuity

Measuring ranges
(Mid-scale value)		 3Ω/500Ω
(1.5Ω) / (20Ω)
Output voltage on open circuit 4.1V DC approx.
Measuring current 210mA DC min.
Accuracy ±1.5% of scale length

AC Voltage

AC Voltage 0 - 600V AC
Accuracy ±5% of scale length

General

Safety Standard IEC 61010-1 CAT III 600V Pollution Degree 2
IEC 61010-2-031
IEC 61557-1/2/4
IP Rating IEC 60529-IP54
EMC Standard IEC 61326-1
Power source R6 (AA) (1.5V) × 6
Dimensions 106(L) × 160(W) × 72(D)mm
Weight 560g approx.
Included Accessories 7122B (Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6 (AA) × 6Â
9121 (Shoulder Strap)Â
Instruction Manual
