Karma Shear And Torque Pattern Gauges

$174.25
Excl GST: $158.41
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

SGK-Shear-Gauges

Calibration needed?

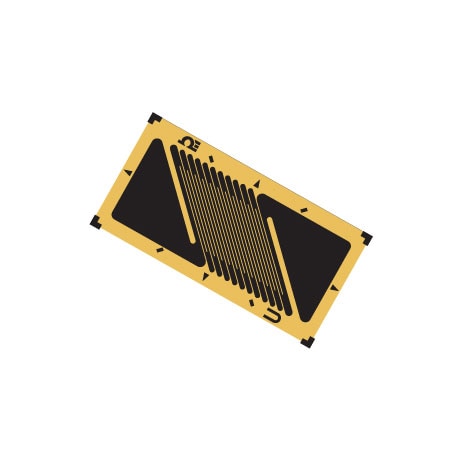

Karma Shear And Torque Pattern Gauges
View full details
  • Description
OMEGADYNE® offers K-Series strain gages for shear and torsional strain applications. These strain gages can be used in transducer design for shear beam load cells. They can also be used for reaction torque on a shaft. Single strain gages are available, SGK-SS3A-K350U-**** and matched, but with opposite grid angle is the SGK-SS3B-K350U-****. The SGK-SD3A-K350U-**** and the SGK-SD3B-K350U-**** have 2 shear strain gages, with opposite grid angles, on one carrier, with separate leads/tabs(electrically independent). The SGK-SDH3B-K350U-**** has 2 shear strain gages, with opposite grid angles with a common lead/tab.
