Jack Panel Assemblies with Miniature 3-Prong TC and RTD Connectors

$245.55
Excl GST: $223.23
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

MTP-Panel

Calibration needed?

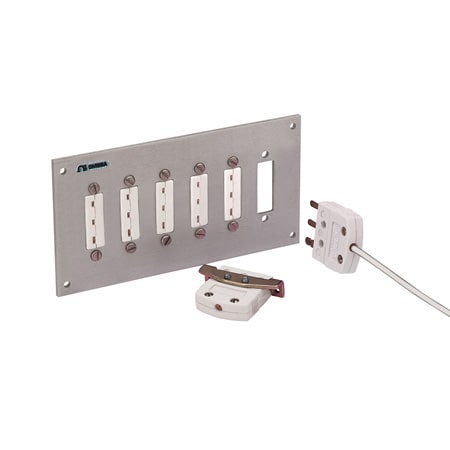

Configurable anodized aluminum panel assemblies with miniature 3-Prong TC & RTD connectors. Brings temperature measurement to your control, console, or instrument panel.
View full details
  • Description
  • Download Brochures
Other panels available upon request. Custom panels are $1000 minimum order for custom SKU part number.

Circuits
Per Row		   1 Row
(1 3/4' H)		 2 Row
(3 1/4' H)		 3 Row
(4 3/4' H)		 4 Row
(6 1/4' H)
6
(438' L)		 Model No. MTP-1-06-(*) MTP-2-12-(*) MTP-3-18-(*) MTP-4-24-(*)
12**
(8 1/8' L)		 Model No. MTP-1-12-(*) MTP-2-24-(*) MTP-3-36-(*) MTP-4-48-(*)
18**
(11 7/8' L)		 Model No. MTP-1-18-(*) MTP-2-36-(*) MTP-3-54-(*) MTP-4-72-(*)
*Insert thermocouple calibration code: J, K, T, E or U.
** 6 mounting holes per panel.
