Industrial RTD Probe with IO-Link, 4-20mA, and Switched Output

$622.79
Excl GST: $566.17
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

PRTXI

Calibration needed?
Temperature transmitters with IO-Link/PNP Switch/4-20mA outputs, with a scalable measuring range from -50 to 200°C. IP69K rated 316L stainless steel housing for harsh environments.
View full details
  • Description
  • Download Brochures

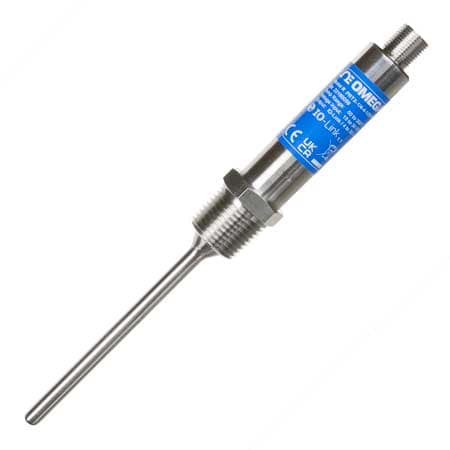

The Omega PRTXI series of temperature transmitters are IO-Link capable for reliable, bi-directional, point to point communication for process data and sensor configuration; Also equipped with a scalable 4-20mA analog output and a switched output that can handle current draws up to 200mA. These sensors utilize a PT100 Class A RTD element to provide an accuracy of +/- 0.55°C throughout the entire measuring range of -50...+200°C (-58...+392°F). Made with a fully welded 316L Stainless Steel housing, the sensor has excellent corrosion resistance and is IP69K rated. Available in standard lengths from 2" to 12", with probe diameters of 1/8", 3/16", and 1/4", and both G and NPT process connections of 1/4", 3/8", and 1/2".
