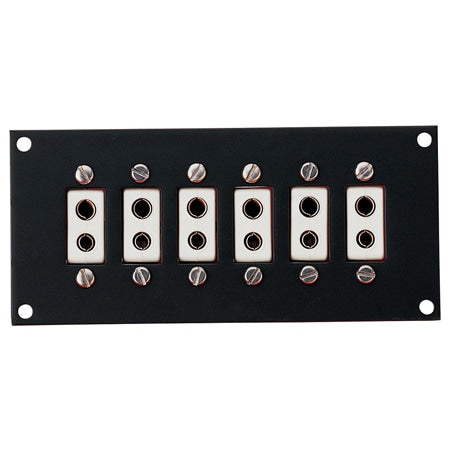

High Temp Jack Panel Assemblies for Standard Thermocouple Connectors

$554.87
Excl GST: $504.43
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

NHJP

Calibration needed?
Configurable steel panel assemblies with standard size ceramic TC connectors for high temperature and vacuum instrumentation and control panel environments.
View full details
  • Description
  • Download Brochures
OMEGA high temperature jack panels feature ceramic connectors mounted in a steel plate for service temperatures up to 1000°F (537°C). These panels with UHX connectors are ideal when glazed ceramic or nylon connector panels would contaminate a vacuum system.

Circuits
Per Row		 1 Row
(25/8' H)		 2 Rows
(43/8' H)		 3 Rows
(61/8' H)		 4 Rows
(77/8' H)
6
(53/4' L)		 NHJP1-06-[*] NHJP2-12-[*] NHJP3-18-[*] NHJP4-24-[*]
12
(101/4' L)		 NHJP1-12-[*] NHJP2-24-[*] NHJP3-36-[*] NHJP4-48-[*]
18
(143/4' L)		 NHJP1-18-[*] NJHP2-36-[*] NHJP3-54-[*] NHJP4-72-[*]
Connector
Quantity Discounts
1-10 . . . . . . . . . . . . .Net
11-24 . . . . . . . . . . .10%
25-49 . . . . . . . . . . .15%
50-99 . . . . . . . . . . .20%
100 and up . . . .Consult Sales


Other panels available upon request. Customs Panels are $1000 minimum order for custom SKU part number.
