High Temp Jack Panel Assemblies for Miniature Thermocouple Connectors

$259.46
Excl GST: $235.87
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

SHXJP

Calibration needed?
Configurable steel panel assemblies with miniature ceramic TC connectors for high temperature and vacuum instrumentation environments.
View full details
  • Description
  • Download Brochures

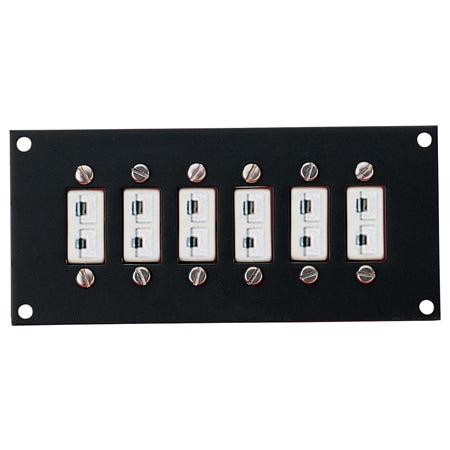

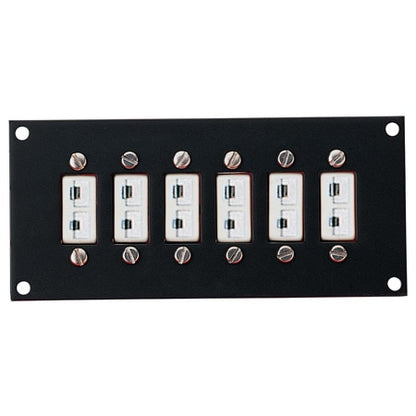

OMEGA high temperature jack panels feature SHX series ceramic connectors mounted in a steel plate for service temperatures up to 1000°F(537°C). They are also available with unglazed connectors, type USHX, for applications where glazed connectors, would contaminate a vacuum system. Other panels are available upon request. Custom panels are $1000 minimum order for custom SKU part number.'

Circuits
Per Rows		 1 Row
(13/4' H)		 2 Rows
(31/4' H)		 3 Rows
(41/2' H)		 4 Rows
(57/8' H)
6
(43/8' L)		 SHXJP1-06-(*) SHXJP2-12-(*) SHXJP3-18-(*) SHXJP4-24-(*)
12(81/8' L) SHXJP1-12-(*) SHXJP2-24-(*) SHXJP3-36-(*) SHXJP4-48-(*)
18(117/8' L) SHXJP1-18-(*) SHXJP2-36-(*) SHXJP3-54-(*) SHXJP4-72-(*)
* Insert calibration code: J, K, T, E, R/S, N, U
