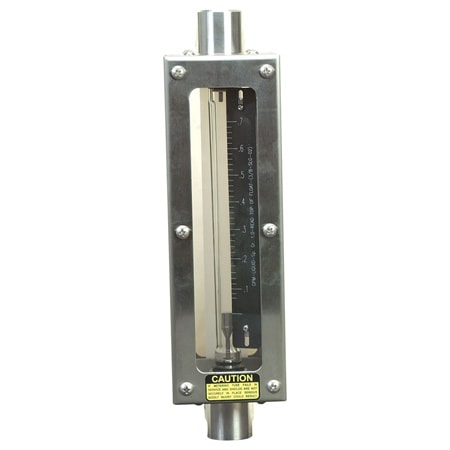

High Accuracy Stainless Steel Variable Area Flow Meters

$2,611.54
Excl GST: $2,374.13
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

FL600-Series

Calibration needed?
Flow Meters for air and water applications. Accuracy: ±3% of full scale Repeatability: ±1% Wetted Parts:316 SS, borosilicate glass, EPR O-Rings Max. Temperature: 200°F
View full details
  • Description
  • Download Brochures
Variable Area Flow Meter for air and water applications.

SPECIFICATIONS
Accuracy: ±3% of full scale
Repeatability: ±1%
Scale: 127 mm (5')
Wetted Parts: 316 stainless steel borosilicate glass, EPR O-Rings
Max. Temperature: 93°C (200°F)
Connections: FNPT

Water Models Air Models Max
Pressure
PSIG		 Wt.
kg (lb)
Model No. Max
GPM		 ΔP
inH2O		 Ports
NPT		 Model No. Max
SCFM		 Ports
NPT
FL601G 0.74 5 ½ FL610G 3.0 ½ 250 4.5 (10)
FL602G 2.00 40 ½ FL611G 8.2 ½ 250 4.5 (10)
FL603G 5.00 14 1 FL612G 21.5 1 200 4.5 (10)
FL604P 26.00 70 1 FL613P 90.0 1 200 4.5 (10)
FL605P 61.00 40 2 FL614P 250.0 2 125 7.7 (17)
FL606P 116.00 45 2 FL615P 245.0 2 125 7.7 (17)
