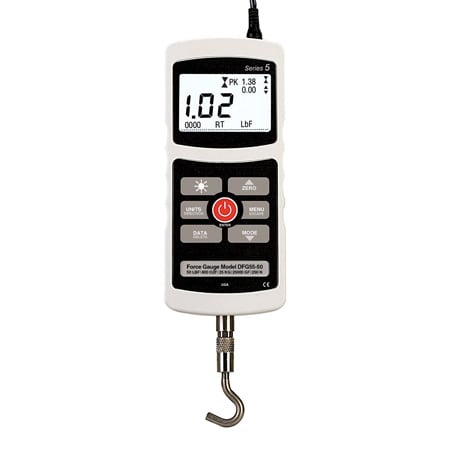

High Accuracy Digital Force Gauge

$3,830.04
Excl GST: $3,481.85
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

DFG55

Calibration needed?
The DFG55 series has a high 0.1% accuracy and high speed sampling rate which is ideal for quickly and precisely measuring tension and compression forces.
View full details
  • Description
  • Download Brochures
OMEGA’s DFG55 advanced digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry. With capacities from 0.12 to 500 lb (0.5 to 2500 N) the gauges feature an industry-leading sampling rate of 7000 Hz, producing accurate results even for quick-action tests. Accuracy is ±0.1% of full scale ±1 digit, and resolution is 1/5000.

A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

The DFG55’s averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate.

SPECIFICATIONS
Accuracy: ±0.1% of full scale ±1 digit
Power: AC or NiMH rechargeable battery (included)
Battery Life: Up to 7 hours continuous with back-light on; up to 24 hours with back-light off
Low Battery: Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Measurement Units: lbF, ozF, gF, kgF, N, kN, mN (depending on model)
Safe Overload: 150% of full scale (display shows “OVLD” at 110% and above)
Full Scale Deflection: 0.25 mm (0.01') except DFG55-0.12, 0.13 mm (0.05')
Analog Output: ±1 Vdc, ±0.25% FS
USB/RS232 Output: Configurable up to 115,200 baud; includes Gauge Control Language 2 for full computer control
Setpoint Outputs: Three open drain lines
Dimensions: 149.4 H x 64.3 W x 33.6 mm D (5.88 x 2.53 x 1.32')
Weight: Ranges 100 lb or less 0.45 kg (1.0 lb), 200 lb and up, 0.54 kg (1.2 lb)

Frequently Asked Questions

A digital force gauge measures tension and compression forces in applications like quality control, component testing, and material analysis. It provides precise, real-time force readings in newtons, kilograms, or pounds, making it ideal for laboratory and industrial use.

This high-accuracy digital force gauge offers precision with an accuracy of ±0.2% or better, depending on the model. It ensures reliable and repeatable force measurements for demanding testing applications across manufacturing and engineering environments.

Yes, this digital force gauge is designed to measure both tension (pull) and compression (push) forces. The reversible load cell and dual-direction capability make it versatile for a wide range of test applications.

Yes, all our force gauges are supplied with a traceable calibration certificate. NATA-accredited calibration is also available on request to meet industry compliance and audit standards.

 Absolutely. Its high resolution, rugged build, and wide measuring range make it ideal for industrial applications like product inspection, mechanical component testing, and assembly verification.

This gauge can display readings in various units such as Newtons (N), kilogram-force (kgf), and pound-force (lbf). You can easily switch between units via the onboard menu to suit your testing requirements.

Yes, many models include USB or RS-232 output for data logging and report generation. You can connect the device to a PC or printer to export force data for further analysis or documentation.
