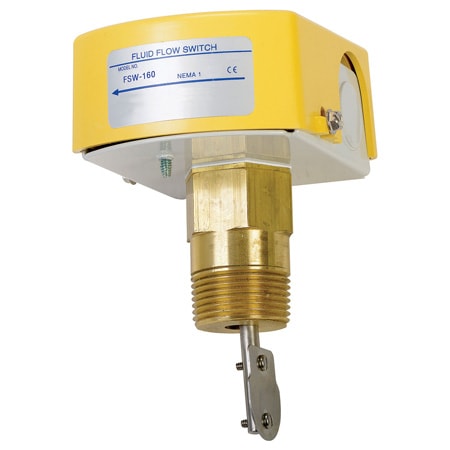

Heavy Duty Paddle Flow Switch
Regular price
$470.69
Excl GST: $427.90
Excl GST: $427.90
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:FSW-160-Series
The FSW-160 is the newest heavy-duty line of flow switches.The switch is used to signal,start,or stop electronically operated equipment when flow or no-flow conditions occur.
Couldn't load pickup availability
- Description
- Download Brochures
The OMEGA™ FSW-160 is the newest heavy-duty line of flow switches. The switch is used to signal, start, or stop electronically operated equipment when flow or no-flow conditions occur.
Omega’s elastomeric sealing system is superior to the metal bellows that are subject to metal fatigue and corrosion. This seal system has been field-proven for over a decade. The FSW-160 can be used in pipes 1 inch and larger, with set-points as low as 4 GPM (15.2 LPM) to over 500 GPM (1893 LPM) in larger pipe sizes. The FSW160 uses a 15A SPDT micro switch that can control a 1/2 horsepower motor.
Specifications
Hysteresis (? Flow Rate to Activate/ Deactivate Switch)
10% at upper end of flow range
30% at lower end of flow range
Differential Pressure Drops Across Unit Under Normal Operating Conditions:
1 to 3" pipe, less than 1 psi
4 to 48" pipe, negligible
Working Line Pressure: 200 psig maximum [proof tested to 1200 psig at 21°C (70°F)]
Working Temperature: 121°C (250°F) maximum continuous
Wetted Materials:
Body and Lid: Brass
Shaft: 304 stainless steel
Paddle: 316 stainless steel
Seal: EPDM
Electrical Switch Characteristics SPDT 15 A, 1/2 hp at 125 or 250 Vac 0.5 A at 125 Vdc (tungsten lamp) 0.25 A @ 250 Vdc (tungsten lamp)
Omega’s elastomeric sealing system is superior to the metal bellows that are subject to metal fatigue and corrosion. This seal system has been field-proven for over a decade. The FSW-160 can be used in pipes 1 inch and larger, with set-points as low as 4 GPM (15.2 LPM) to over 500 GPM (1893 LPM) in larger pipe sizes. The FSW160 uses a 15A SPDT micro switch that can control a 1/2 horsepower motor.
Specifications
Hysteresis (? Flow Rate to Activate/ Deactivate Switch)
10% at upper end of flow range
30% at lower end of flow range
Differential Pressure Drops Across Unit Under Normal Operating Conditions:
1 to 3" pipe, less than 1 psi
4 to 48" pipe, negligible
Working Line Pressure: 200 psig maximum [proof tested to 1200 psig at 21°C (70°F)]
Working Temperature: 121°C (250°F) maximum continuous
Wetted Materials:
Body and Lid: Brass
Shaft: 304 stainless steel
Paddle: 316 stainless steel
Seal: EPDM
Electrical Switch Characteristics SPDT 15 A, 1/2 hp at 125 or 250 Vac 0.5 A at 125 Vdc (tungsten lamp) 0.25 A @ 250 Vdc (tungsten lamp)
×
