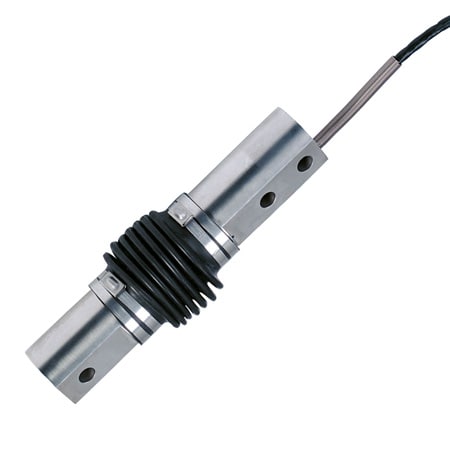

Heavy Duty, Constant Moment Beam Load Cell
Regular price
$1,967.71
Excl GST: $1,788.83
Excl GST: $1,788.83
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:LC602
The LC602 series of stainless steel, tension and compression load cells are suitable for industrial weighing applications. Available in capacities from 250 to 10,000 lbf.
Couldn't load pickup availability
- Description
- Download Brochures
Model LC602 is a heavy duty industrial load cell designed for industrial weighing and scale applications. The LC602 offers a highly accurate, rugged design in a small, economical package.
The LC602 is also available in metric configurations, with ranges from 0-25 to 0-5000 kgf. Please see the LCM602 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS
Excitation: 10 Vdc (15V max)
Output:
?500 lb/250 kgf: 2 mV/V
>500 lb/250 kgf: 3 mV/V ±0.25 % FSO
5-Point Calibration (in Compression): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.03% FSO
Hysteresis:
?500 lb/250 kgf: ±0.05% FSO
>500 lb/250 kgf: ±0.03% FSO
Repeatability: ±0.02% FSO
Zero Balance: ±1.0% FSO
Operating Temp Range: -34 to 82°C (-30 to 180°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.002% FSO/°F
Span: ±0.001% FSO/°F
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 ? minimum
Protection Class: IP65
Output Resistance: 350 ±10 ?
Full Scale Deflection: 0.010 to 0.015" typical
Construction: Stainless steel
Agency Approval: FM Intrinsically Safe IS/I.II.III/1/CDEFG
Electrical: 4.6 m (15') PVC insulated, 4-conductor shielded color-coded cable
