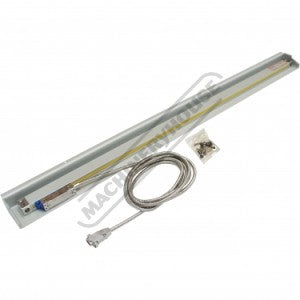

Stepping into meter-scale precision, this GS10 model spans 1000 mm while maintaining 5 μm accuracy—ideal for large CNC gantries, workstations, or inspection systems requiring broad, exact measurement coverage with dependable stability.
Key Features:
1-meter range with fine 5 μm readings
Designed for expansive table and fixture use
High repeatability in extended measurement
Durable control for precision across wide spans
Measure Without Limits
Get in touch to request a quote or calibration for the GS10 1000 mm DRO Scale.
DOUBLE SEAL DESIGNED SCALES|
The plastic seals of the transducer use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance
100% LASER CALIBRATION|
All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specification|
ADVANCED OPTICAL MEASURING SYSTEM|
The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market|
The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life|
D.I.Y. INSTALLATION|
An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets|
