G Type Thermocouple Duplex Extension Wire

$441.93
Excl GST: $401.75
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

EXGG-GX-PP-WIRE

Calibration needed?

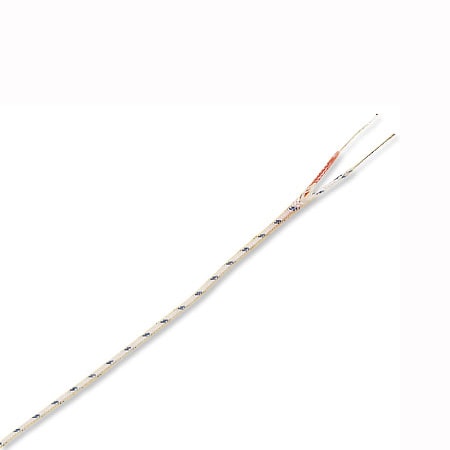

Duplex thermocouple extension wire for Type G (GX) calibration. High temperature fiberglass insulation
View full details
  • Description
  • Download Brochures
Compensating Extension Wires for W/W26%Re Thermocouples. Alloy types 200/226.
Color Code: Positive Wire, White/Blue Trace Negative Wire, Red Overall, White/Blue Trace
Model No. Insulation AWG
No.		 Type
Wire		 Insulation Max. Temp Nominal
Size (mm)		 Wt.†
kg/300m
Conductor Overall °F °C
EXGG-G-24 Glass 24 Solid Glass Braid Glass Braid 500 260 1.27 x 2.03 5
†Weight of spool and wire, rounded up to next highest lb. (does not include packing material).
