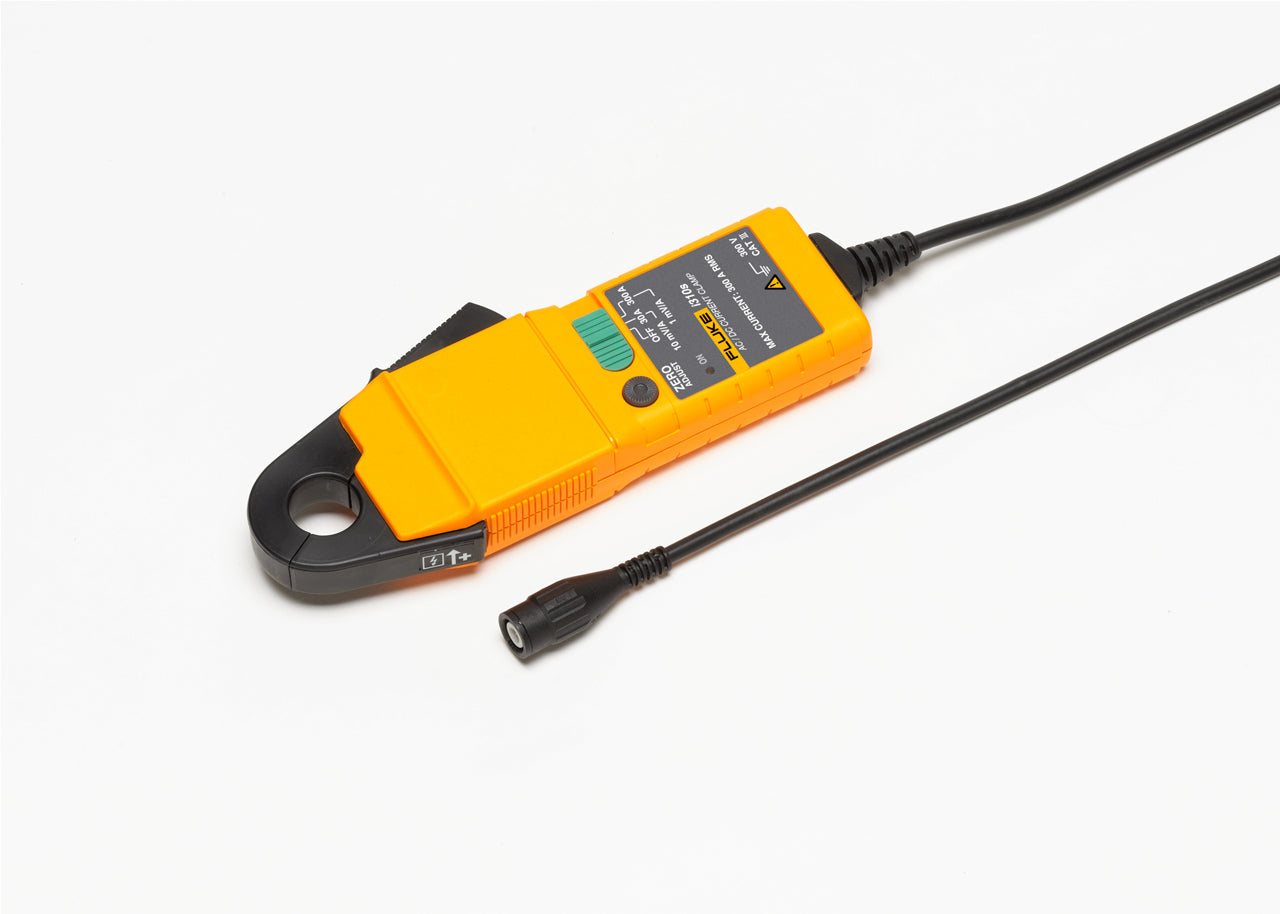

The Fluke I310S Current Probe is a precision instrument for measuring AC currents safely and accurately. Designed to be compact and ergonomically balanced, it easily adapts to a wide range of multimeters. With True RMS capability, it delivers reliable readings even for non-linear signals. The slim jaw design allows access to crowded panels, while its protective overmolding offers enhanced durability. Ideal for electricians and technicians, this probe streamlines current measurement across diverse electrical applications without compromising on accuracy or safety.
Key Features:
True RMS measurement for AC currents
Slim jaw for access in tight spaces
Ergonomic design for one-handed use
Durable overmold protects against damage
Ideal for use with digital multimeters
Accurate across varied current types
Professional-grade tool for electrical diagnostics
- Current Ranges: 30 A and 300 A ACRMS or ±45 A and 450 A DC
- Measuring Ranges: ±45 A and 450 A dc
- Output Sensitivity: 10 mV/A (40 A) to 1 mV/A (400 A)
- Resolution: ±50 mA (40 A) to ±100 mA (400 A)
- Load Impedance: > 10 k Ohms and £ 100 pF
- Frequency Range (small signal): DC to 20 kHz (- 3 dB)
- Phase Shift below 1 kHz, < 2 degrees
- Temperature Coefficient: ±0.1% of reading / °C
- Power Supply: 9 V Alkaline
