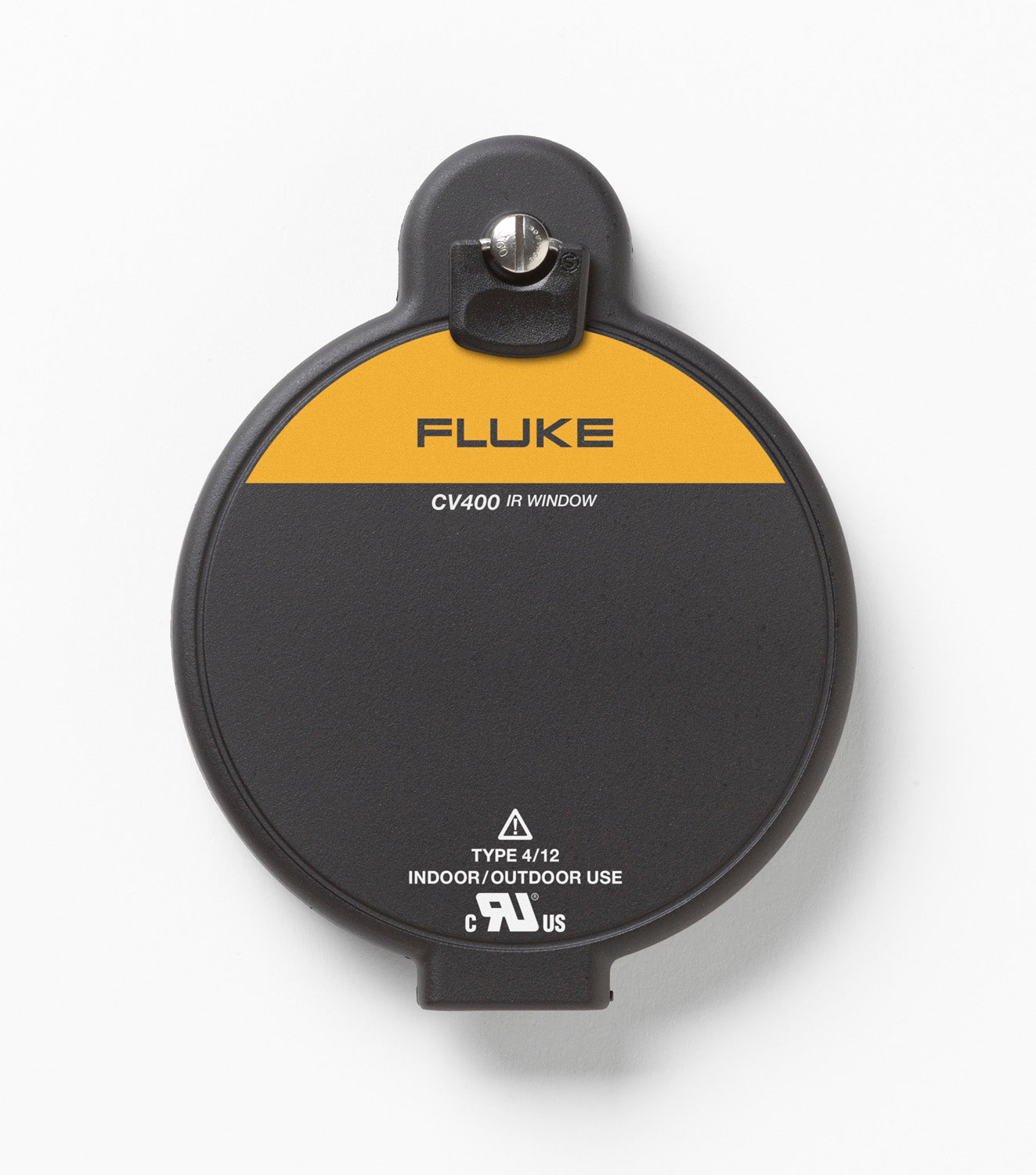

Fluke CV400 ClirVu 95 mm (4 in) Infrared Window

$803.00
Excl GST: $730.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

FLUCV400

Calibration needed?
View full details
  • Description
  • Features
  • Download Brochures

The Fluke CV400 CLIRVu™ 95 mm (4 in) Infrared Window allows safe infrared inspections of electrical and mechanical systems without exposing personnel to energized components. The optically clear window supports transmission of IR and visible light while providing a barrier against arc flash hazards. Its wide diameter supports larger field-of-view imaging, making it ideal for switchgear, cabinets, and enclosures where visibility and safety are crucial.

Key Features:

95 mm (4-inch) clear aperture for broad field of view

Optical clarity for infrared and visible inspection

Safety barrier to protect against arc flash exposure

Rugged frame designed for industrial panel use

Compatible with standard enclosures and switchgear

Installs and grounds in less than 5 minutes

Save time with quick and easy installation with the CV Series – 5 minutes or less.

  • One technician
  • One hole with standard Greenlee® punch
  • Panel door does not need to be removed
  • Grounds instantly to metal enclosure with patent-pending AutoGroundâ„¢ process
  • Maintains panel arc test ratings up to 63kA when properly installed

Work more efficiently with Fluke ClirVu® CV400 95 mm (4 in) Infrared Windows

  • NFPA 70E processes significantly reduced due to less work permit requirements
  • Faster and more comfortable inspections because full PPE is often not required
  • Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance
  • CV400 is Torture Testedâ„¢ to the highest arc blast test ratings IEEE C37.20.7: 63 kA Arc tested at KEMA, UL 50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, NEMA 4/12, CSA C22.2 NO. 14-13:2012, and CE
  • Convenience of both quick turn or security keyed access
