Fluke 789 Process Meter

$2,667.28
Excl GST: $2,424.80
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

FLU789

Calibration needed?
View full details
  • Description
  • Features

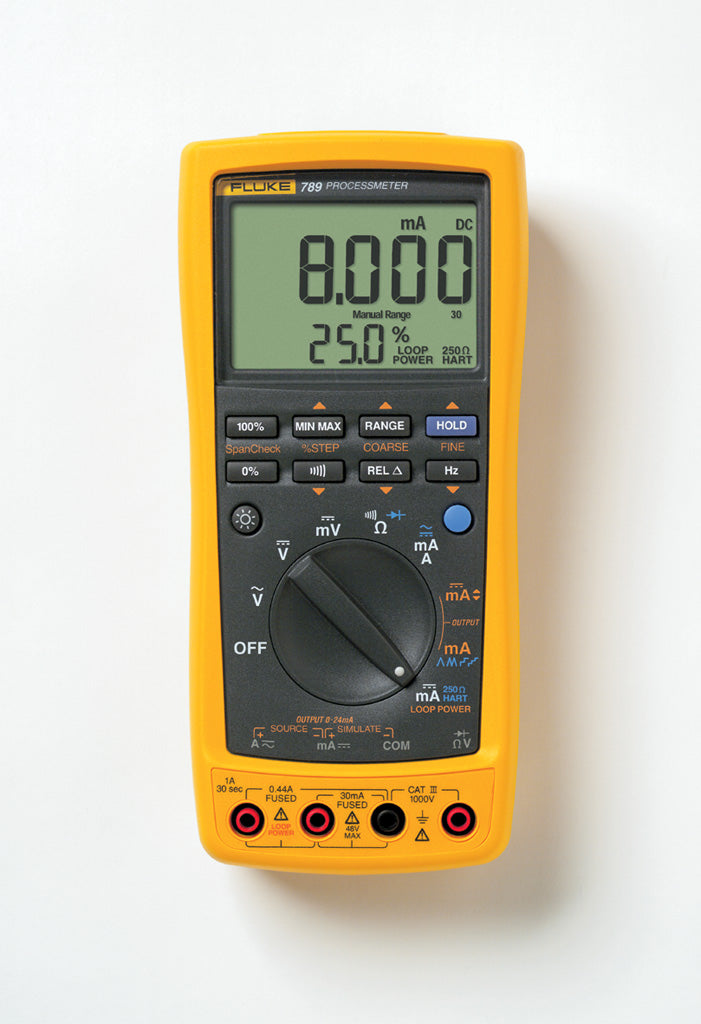

Fluke 789 ProcessMeter doubles your troubleshooting power and is Fluke Connect-enabled

The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a loop calibrator with the power of a digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a display that's not only twice as large as the Fluke 787B, but also twice as bright with two levels of backlighting. And its built-in, selectable 250 ohm HART® resistor eliminates the need to carry a separate resistor.

The 789 also has a 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can add an optional temperature measurement module and the wireless data logging capabilities of the Fluke Connectâ„¢ mobile app to log data wirelessly to your smart phone and review it from a remote location. So now process technicians can do a lot more while carrying a lot less.

Other useful features:

  • Includes 0% and 100% buttons to toggle between 4 and 20 mA sourcing for a quick span check
  • Provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper
  • Simultaneous displays mA and % of scale readings
  • Provides 20 mA DC current source/loop calibrator/simulator
  • Offers manual step (100%, 25%, Coarse, Fine) plus auto step and auto ramp
  • Delivers 0.1% dc voltage accuracy and 0.05% dc current accuracy
  • Provides 1200 ohm drive capability on mA source
  • Offers HART mode setting with loop power and a built-in 250 ohm resistor
  • Offers externally accessible fuses and batteries for easy replacement

Fluke 789 ProcessMeterâ„¢ Includes:

  • Fluke 789 ProcessMeter
  • AC175 Alligator Clips
  • Four (4) AA 1.5 V alkaline batteries (installed)
  • TL71 safety-designed test lead set

Features of the Fluke 789:

  • 24 V Loop power supply
  • Very large dual display
  • Enhanced backlight with 2 brightness settings
  • 1200 ohm drive capability on mA source
  • HART mode setting with loop power and a built-in 250 ohm resistor
  • 0% and 100 % buttons to toggle between 4 and 20 mA sourcing for a quick span check
  • Externally accessible fuses for easy replacement
  • Infrared-port to process data in FlukeView Forms (V2.1) software

Fluke 789 features that are also included in the Fluke 787:

  • Precision 1000 V, 440 mA True-RMS digital multimeter
  • 0.1% dc voltage accuracy
  • 0.05% dc current accuracy
  • Frequency measurement to 20 kHz
  • Min/Max/Average/Hold/Relative modes
  • Diode Test and Continuity Beeper
  • Simultaneous mA and % of scale readout
  • 20 mA DC current source / loop calibrator / simulator
  • Manual Step (100%, 25%, Coarse, Fine) plus Auto Step and Auto Ramp
  • Externally accessible battery for easy battery changes

Safety conformance

Meets 1000 Volt EN61010-1 CAT III standards and 600 Volt EN61010-1 CAT IV standards.

Â
  Â
Â

Fluke Connect is not available in all countries.

All trademarks are the property of their respective owners. Smart phone, wireless service and data plan not included with purchase. First 5 GB of storage is free. Compatible with iPhone 4x and up running iOS 7 or higher, iPad (in an iPhone frame on iPad) and Galaxy S4, Nexus 5, HTC One running Androidâ„¢ 4.4.x or higher. Apple and the Apple logo are trademarks of Apple Inc. registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play is a trademark of Google Inc.
