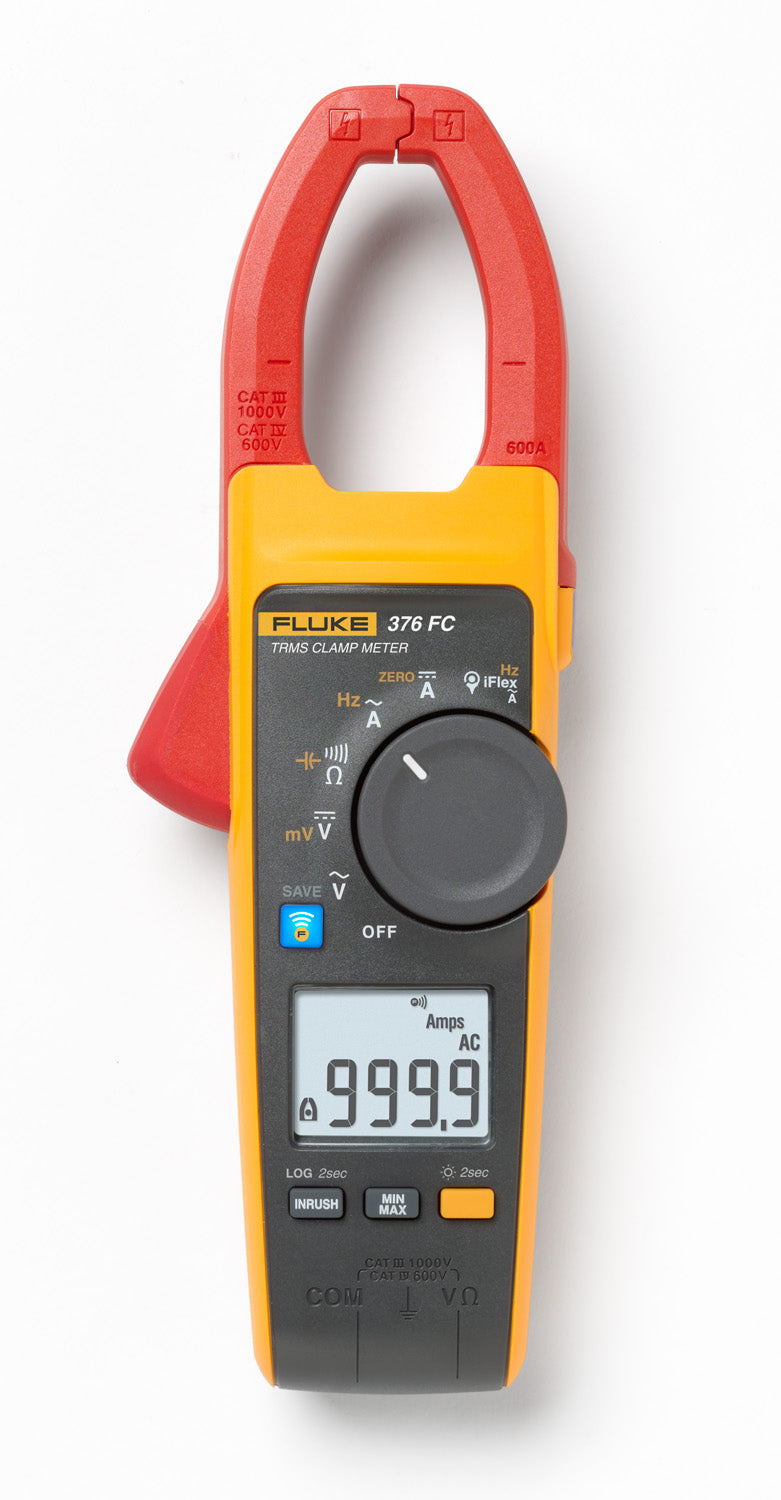

Fluke 376 FC True RMS Clamp Meter

$1,195.04
Excl GST: $1,086.40
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

FLU376FC

Calibration needed?
View full details
  • Description
  • Features
  • Download Brochures

The Fluke 376 FC True-rms Clamp Meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians. The 376 is part of the Fluke Connect family of wireless test tools that enable you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity.

Find the cause of difficult problems

The 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of non-linear signals, such as adjustable speed drives, electronic ballasts and other non-linear loads. The clamp also uses proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it.

Measure:

  • Voltage to 1000 V AC or DC
  • Resistance to 60 kΩ with continuity detection
  • Min, max, average, and inrush recording to capture variations automatically
  • 500 mV DC measurement range to interface with other accessories
  • 1000 μF capacitance measurement

Work safely and conveniently

The 376 FC clamp carries a CAT III 1000 V, CAT IV 600 V safety rating, designed to offer you the highest possible protection in a test tool.

The included iFlex flexible current probe provides easier access to large conductors in tight spaces. The flexible probe:

  • Expands the measurement range to 2500 A AC
  • Allows frequency measurement to 500 Hz with body jaw and iFlex

    Â

    • Connect your meter to your smartphone with Fluke Connect Measurements
    • Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
    • Record results directly to your phone and the Cloud
    • Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke 376 FC
    • Create and share reports from the field via email, or converse in real-time with ShareLiveâ„¢ video calls
    • iFlex flexible current probe expands the measurement range to 2500 A ac; provides access to large conductors in tight spaces (included)
    • TPAK magnetic hanging strap (included)
    • Integrated VFD low pass filter for accurate motor drive measurements
    • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
    • CAT IV 600 V, CAT III 1000 V safety rating
    • Three-year warranty
    • Soft carrying case

    Measurement Capability

    • 1000 A ac and dc current measurement
    • 2500 A ac current measurement with iFlex flexible current probe
    • 1000 V ac and dc voltage measurement
    • True-rms voltage and current for accurate measurements on non-linear signals
    • Frequency measurement to 500 Hz with body jaw and iFlex
    • Resistance measurement to 60 kΩ with continuity detection
    • Min, max, average, and inrush recording to capture variations automatically
    • 500 mV dc measurement range to interface with other accessories
    • 1000 μF capacitance measurement
