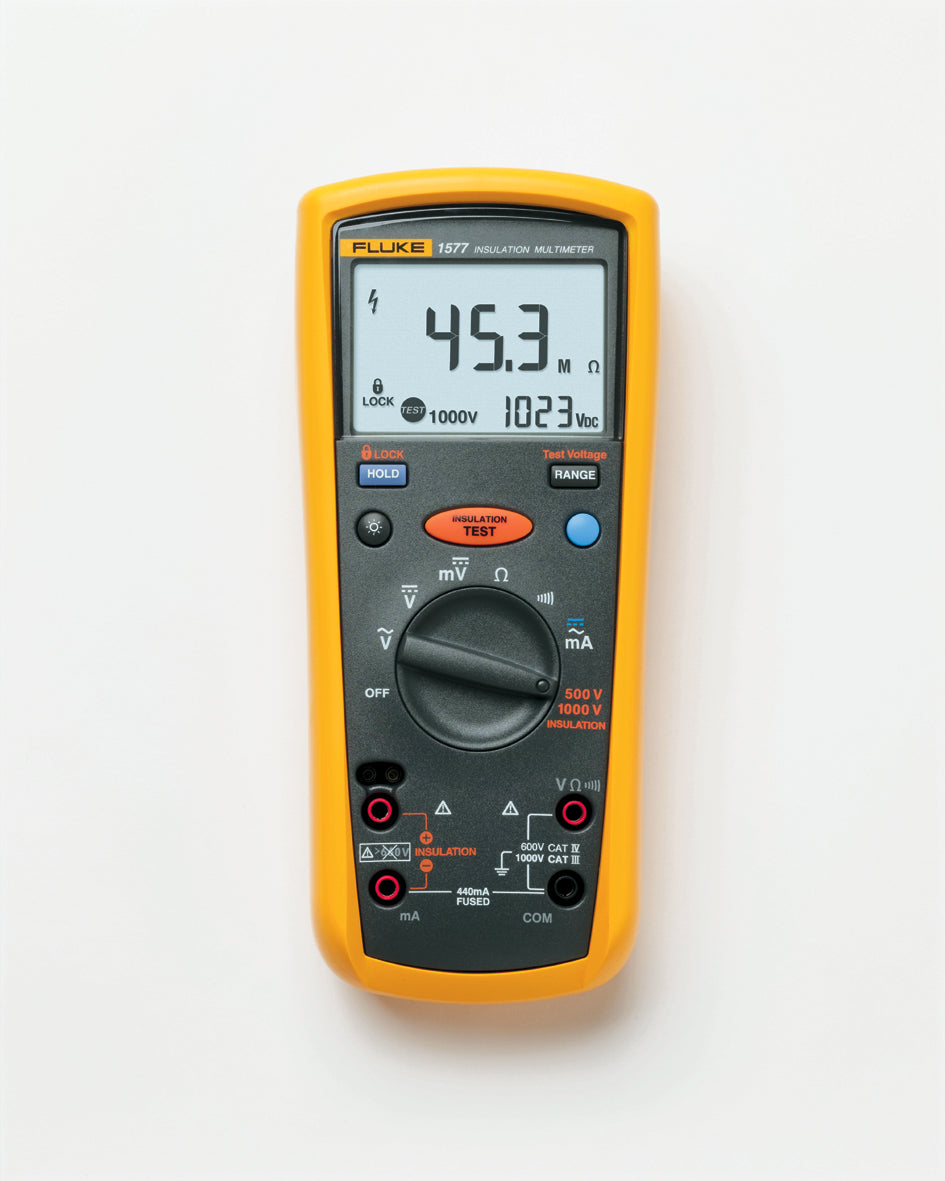

Fluke 1577 Insulation Multimeter

$1,743.28
Excl GST: $1,584.80
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

FLU1577

Calibration needed?
View full details
  • Description
  • Features

The Fluke 1577 is a 2-in-1 insulation tester and digital multimeter designed for electrical testing. It offers insulation resistance testing up to 1000 V and a wide range of multimeter functions, making it ideal for troubleshooting and preventive maintenance.

Key Specifications:

Insulation Resistance Test Voltage: 500 V and 1000 V

Maximum Insulation Resistance: 600 MΩ at 1000 V

Multimeter Functions: AC/DC voltage, current, resistance, and continuity

Accuracy: ±(0.2% + 2) for DC voltage

Display: Backlit LCD with 6000-count resolution

Safety Rating: CAT IV 600 V, CAT III 1000 V

Applications:

Electrical maintenance and troubleshooting

Motor and transformer testing

Cable insulation testing

Preventive maintenance programs

  • Insulation test voltages 500 V, 1000 V
  • Insulation test: 0.1 MΩ to 600 MΩ
  • Auto discharge of capacitive voltage
  • AC/DC Voltage
  • DC millivolts
  • AC/DC milliamps
  • Resistance (0.1 Ω to 50 MΩ)
  • Continuity
  • Three-year warranty
  • Remote probe, test leads, alligator clips
  • Rugged, utility hard case
  • Auto power off to save battery power
  • True RMS
  • Large display with backlight
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • CAT III 1000V, CAT IV 600V measurement category
  • Accepts optional Fluke TPAKTMÂ magnetic hanging system to free your hands for other work
