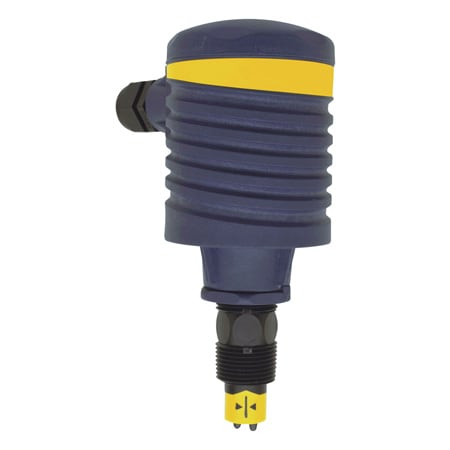

Flow Switch With Compact Relay Controller

$2,100.47
Excl GST: $1,909.52
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

FST200R-Series

Calibration needed?
This switch package offers a complete solution for flow or no-flow switching in pipes or ducting up to 12'. The compact relay controller actuates valves, pumps, or blowers.
View full details
  • Description
  • Download Brochures
This switch package offers a complete solution for flow or no-flow switching in pipes or ducting up to 0.3 m (12'). The compact relay controller reliably actuates valves, pumps, or blowers rated up to 1/2 hp. Common applications include low-flow pump or process protection. To complete the instrumentation package, simply select the switch configuration in accordance with the liquid or gas used in your application.

L
I
Q
U
I
D		 Variable Yes
Clean Y
Slurry Y
Bubbles —
Coating —
Non-Coating Y
Low Viscosity Y
Med. Viscosity Y
High Viscosity —
Low Temperature Y
Med. Temperature —
High Temperature —
Δ Temperature Y
Low Velocity Y
High Velocity —
G
A
S		 Variable Yes
Coating —
Non-Coating Y
Low Temperature Y
Med. Temperature Y
High Temperature —
Δ Temperature —
Low Velocity Y
High Velocity —


SPECIFICATIONS
RELAY CONTROLLER
Supply Voltage: 120/240 Vac 50/60 Hz
Consumption: 0.25 A
Relay Type: (1) SPDT
Relay Current: 10 A, 250 Vac, 1/2 hp
Relay Mode: NO or NC selectable
Time Delay: 0 to 60 s
Temp Range: -40 to 70°C (-40 to 158°F)
Enclosure Rating: NEMA 4X (IP66)
Enclosure Material: Polypropylene (UL 94VO)
Enclosure Rotation: 300° swivel base
Conduit Connection: 1/2 NPT
SENSOR
Range: 0.04 to 3 ft/s (liquids)
Accuracy: ±5% of setpoint at constant temperature and flow rate
Response Time: 10 s (approx.)
Setpoint Drift with Fluid Temperature: 0.5%/°C
Fluid Temperature: 60°C (140°F)
Max Fluid Pressure:
   PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.7 psi/°C above 25°C (77°F)
Process Connection: 3/4 MNPT
Dimensions: 208 L x 71 mm Dia (8.2 x 2.8')
