Flanged Thermowells for 0.260" & 0.385" Bore Diameters

$451.84
Excl GST: $410.76
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

SERIES-260F-385F

Calibration needed?

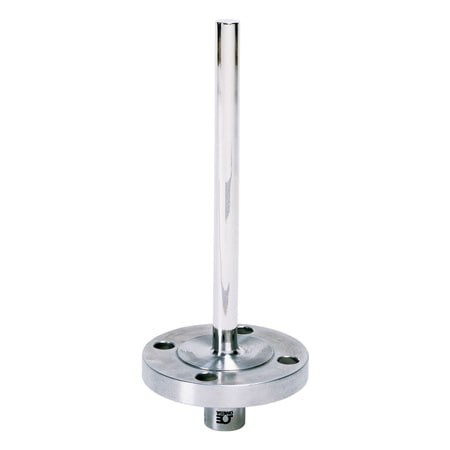

These flanged thermowells have a straight shank & are ideal for 1/4 inch ad 3/8 inch diameter elements. Click here to shop thermowells.
View full details
  • Description
  • Download Brochures
Application:
260F series fits standard length 1/4' diameter elements.
385F series fits standard length 3/8' diameter elements.
Flange Sizes:
1' and 11/2' flanges in all facings and pressure ratings are standard. Other sizes are available on application.
Materials:
Flanges and wells made of Carbon Steel (C-1018), A.I.S.I. 304, A.I.S.I. 316, and Monel are available for quick delivery. Other materials are available. 		   Protective Coatings for Thermowells:
• Resist Corrosion
• For Chemical Baths
• Color-Coded Sensors for Process Control
• Available in PFA, Epoxy and other materials.
Consult Sales Department for complete information
Welding:
Primary weld is “J” groove type; secondary weld is 45° bevel groove. Welding is performed by Navy certified welders using inert gas shielded arc.
Cap and Chain Options:
Consult sales.



Thermowell Dimensions
Model Number Element
Length
A		 Insertion
Length
U		 Shank
Diameter
Q		 Bore
Diameter
B
260F-U 2(*)
U 4(*)
U 7(*)
U10(*)
U13(*)
U16(*)
U22(*)
 4
6
9
12
15
18
24
 2
4
7
10
13
16
22
 3/4
3/4
3/4
3/4
3/4
3/4
3/4
 .260
.260
.260
.260
.260
.260
.260
385F-U 2(*)
U 4(*)
U 7(*)
U10(*)
U13(*)
U16(*)
U22(*)
 4
6
9
12
15
18
24
 2
4
7
10
13
16
22
 7/8
7/8
7/8
7/8
7/8
7/8
7/8
 .385
.385
.385
.385
.385
.385
.385

Flanges
Rating
lb/in2		 Size
inch		 Model Number
(Flange Suffix)
150 1
1-1/2
2 		1-150RF (or FF)(*)
11/2-150RF (or FF)(*)
2-150RF (or FF)(*)
300 1
1-1/2
2		 1-300RF (or FF)(*)
11/2-300RF (or FF)(*)
2-300RF (or FF)(*)
*Insert code for material -304SS for 304 stainless steel,-316SS for 316 stainless steel, -CS for carbon steel
The thermowell and flange must
be made of the same material.
