Flange-to-Flange Mount, Low Torque Sensors
Regular price
$1,721.06
Excl GST: $1,564.60
Excl GST: $1,564.60
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:TQ301

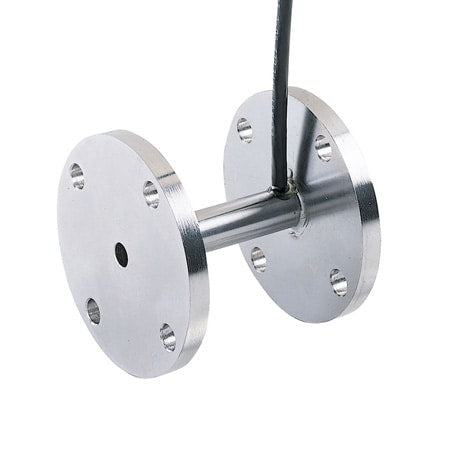

The TQ301 series torque sensors have heavy duty flange mounts and a stainless steel case for positive, non-slip connections and long term reliability in industrial environments.
Couldn't load pickup availability
- Description
- Download Brochures
SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5 Ohms
AccuracyClass: ±0.2% FSO
Linearity, Hysteresis, and Repeatability: ±0.2% FSO Combined
Zero Balance: ±2% FSO
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 4 ft (1.2 m) 4-conductor shielded PVC cable, color coded
Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5 Ohms
AccuracyClass: ±0.2% FSO
Linearity, Hysteresis, and Repeatability: ±0.2% FSO Combined
Zero Balance: ±2% FSO
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 4 ft (1.2 m) 4-conductor shielded PVC cable, color coded
×
