Extruder RTD Probes with Compression or Bayonet Fittings

Extruder RTD Probes with Compression or Bayonet Fittings

$431.67
Excl GST: $392.43
Sale Sold out
Shipping calculated at checkout.

SKU :

CF-000-090-BT-000-090-RTD

Calibration needed?

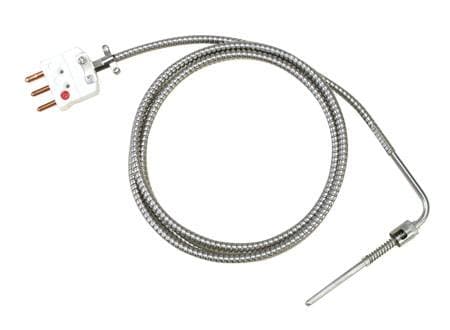

RTD probes with 1/8" NPT brass compression or bayonet fittings and armored cable. Commonly used in extruder & molding equipment. Both straight and bend options available.
View full details
  • Description
  • Download Brochures

These RTD sensors are used extensively in plastic processing for measuring mold and equipment temperatures, and other applications where easy installation and removal are required. These sensors are installed using a spring loaded bayonet cap (BT Style) or compression fittings (CF Style). Mating adapters for the bayonet style mounting are also available (see BTA-1 through 6 depending on length needed)


Standard configurations are based on the most popular lengths with straight sheaths or with 90º bends. The included flex hose over the cable protects the wires from damage in rough environments. Standard terminations include spade lugs and Omega's OTP heavy duty connectors.
