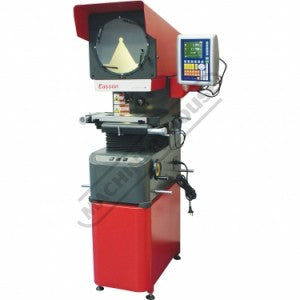

EP-2512 - Easson Optical Projector (240V)365mm Optical Screen

$16,736.72
Excl GST: $15,215.20
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

met-2M007

Calibration needed?
EASSON EP-2512 HIGH PRECISION OPTICAL PROJECTOR EP-2512 high precision optical profile projector provides accurate 2D measurement for all common geometric features such as circles, lines, angles etc. All measured results can be printed or transferred to computer for further processing. The EP-2512 Optical Projector is designed for all circulate dimension measurements in mould and die making, form tool making, screw manufacturing, gear manufacturing etc. Constructed with top class components and under high standard of workmanship, EP-2512 achieves very high measurement accuracy. The axial measurement accuracy is 3+L/100um, where L is the measured length in mm. The total contour distortion is less than 0.08%. EP-2512 is equipped with ES-8P 1um resolution high accuracy measuring system which provides comprehensive and easy to use geometric measurement functions. ES-8P MEASURING SYSTEM SPECIFICATIONS AXIS: X, Y axis liner transducer. A axis rotary encoder RESOLUTION: 0.001mm (X,Y axis) / 0.01
View full details
  • Description
  • Features
EASSON EP-2512 HIGH PRECISION OPTICAL PROJECTOR EP-2512 high precision optical profile projector provides accurate 2D measurement for all common geometric features such as circles, lines, angles etc. All measured results can be printed or transferred to computer for further processing. The EP-2512 Optical Projector is designed for all circulate dimension measurements in mould and die making, form tool making, screw manufacturing, gear manufacturing etc. Constructed with top class components and under high standard of workmanship, EP-2512 achieves very high measurement accuracy. The axial measurement accuracy is 3+L/100um, where L is the measured length in mm. The total contour distortion is less than 0.08%. EP-2512 is equipped with ES-8P 1um resolution high accuracy measuring system which provides comprehensive and easy to use geometric measurement functions. ES-8P MEASURING SYSTEM SPECIFICATIONS AXIS: X, Y axis liner transducer. A axis rotary encoder RESOLUTION: 0.001mm (X,Y axis) / 0.01
Table glass size 290 x 190mm| Measurement travel 250 x 100mm| 365mm Screen diameter| 10x, 20x and 50x lens available (standard machine 10x only)| Digital readout X, Y and A, 1um| Thermal printer, rotary table|
