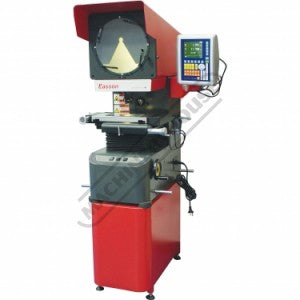

EP-2010 - Easson Optical Projector (240V)315mm Optical Screen

$11,451.44
Excl GST: $10,410.40
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

met-1M008

Calibration needed?
ASSON EP-2010 HIGH PRECISION OPTICAL PROJECTOR EP-2010 high precision optical profile projector provides accurate 2D measurement for all common geometric features such as circles, lines, angles etc. All measured results can be printed or transferred to computer for further processing. The EP-2010 Optical Projector is designed for all circulate dimension measurements in mould and die making, form tool making, screw manufacturing, gear manufacturing etc. Constructed with top class components and under high standard of workmanship, EP-2010 achieves very high measurement accuracy. The axial measurement accuracy is 3+L/100um, where L is the measured length in mm. The total contour distortion is less than 0.08%. EP-2010 is equipped with ES-12P 1um resolution high accuracy measuring system which provides comprehensive and easy to use geometric measurement functions.ES-12P GRAPHIC MEASURING SYSTEM SPECIFICATIONS AXIS: X, Y axis liner transducer. A axis rotary encoder RESOLUTION: 0.001mm (X,Y axis) / 0.01
View full details
  • Description
  • Features
ASSON EP-2010 HIGH PRECISION OPTICAL PROJECTOR EP-2010 high precision optical profile projector provides accurate 2D measurement for all common geometric features such as circles, lines, angles etc. All measured results can be printed or transferred to computer for further processing. The EP-2010 Optical Projector is designed for all circulate dimension measurements in mould and die making, form tool making, screw manufacturing, gear manufacturing etc. Constructed with top class components and under high standard of workmanship, EP-2010 achieves very high measurement accuracy. The axial measurement accuracy is 3+L/100um, where L is the measured length in mm. The total contour distortion is less than 0.08%. EP-2010 is equipped with ES-12P 1um resolution high accuracy measuring system which provides comprehensive and easy to use geometric measurement functions.ES-12P GRAPHIC MEASURING SYSTEM SPECIFICATIONS AXIS: X, Y axis liner transducer. A axis rotary encoder RESOLUTION: 0.001mm (X,Y axis) / 0.01
Table glass size 225 x 125mm| Measurement travel 200 x 100mm| 315mm Screen diameter| 10x, 20x and 50x lens available (standard machine 10x only)| Digital readout X, Y and A, 1um| Thermal printer, rotary table|
