DUAL DISPLAY LCD RATE / RESETTABLE

DUAL DISPLAY LCD RATE / RESETTABLE

$1,317.25
Excl GST: $1,197.50
Sale Sold out
Shipping calculated at checkout.

SKU :

MRTU6-SS25

Calibration needed

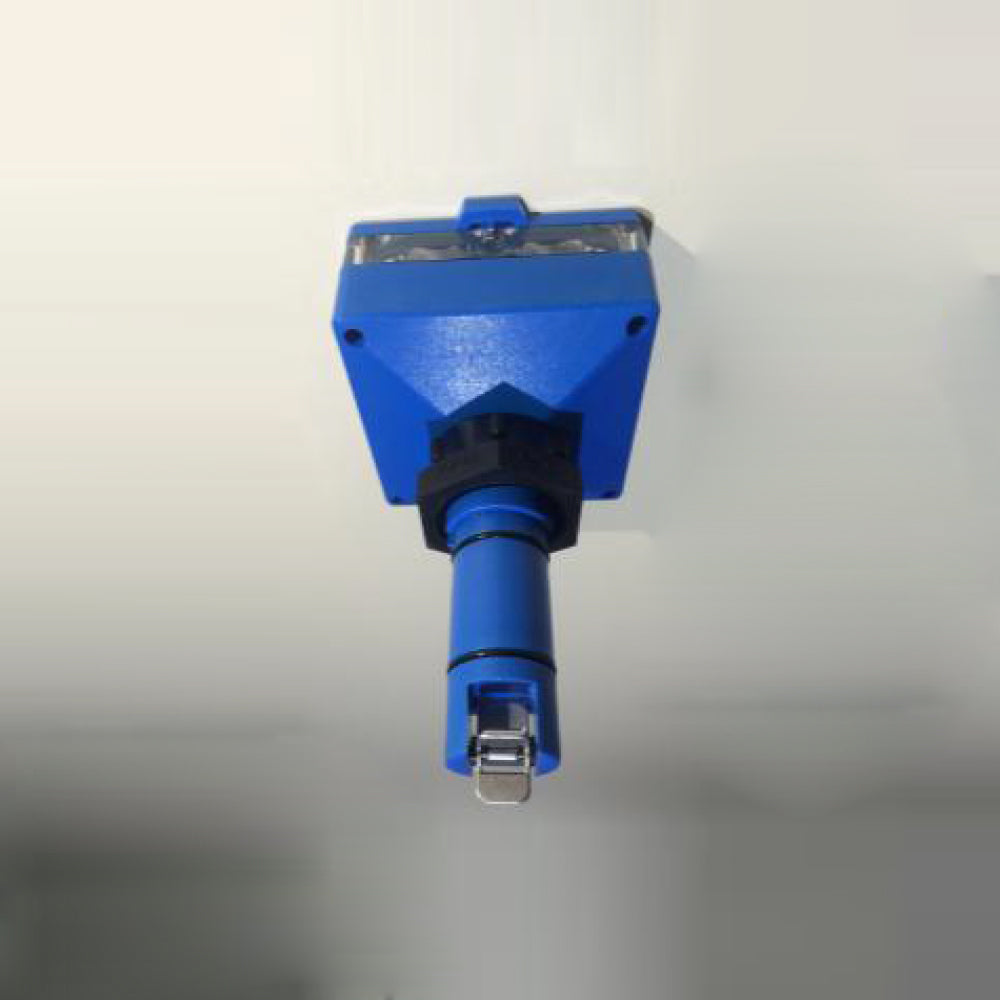

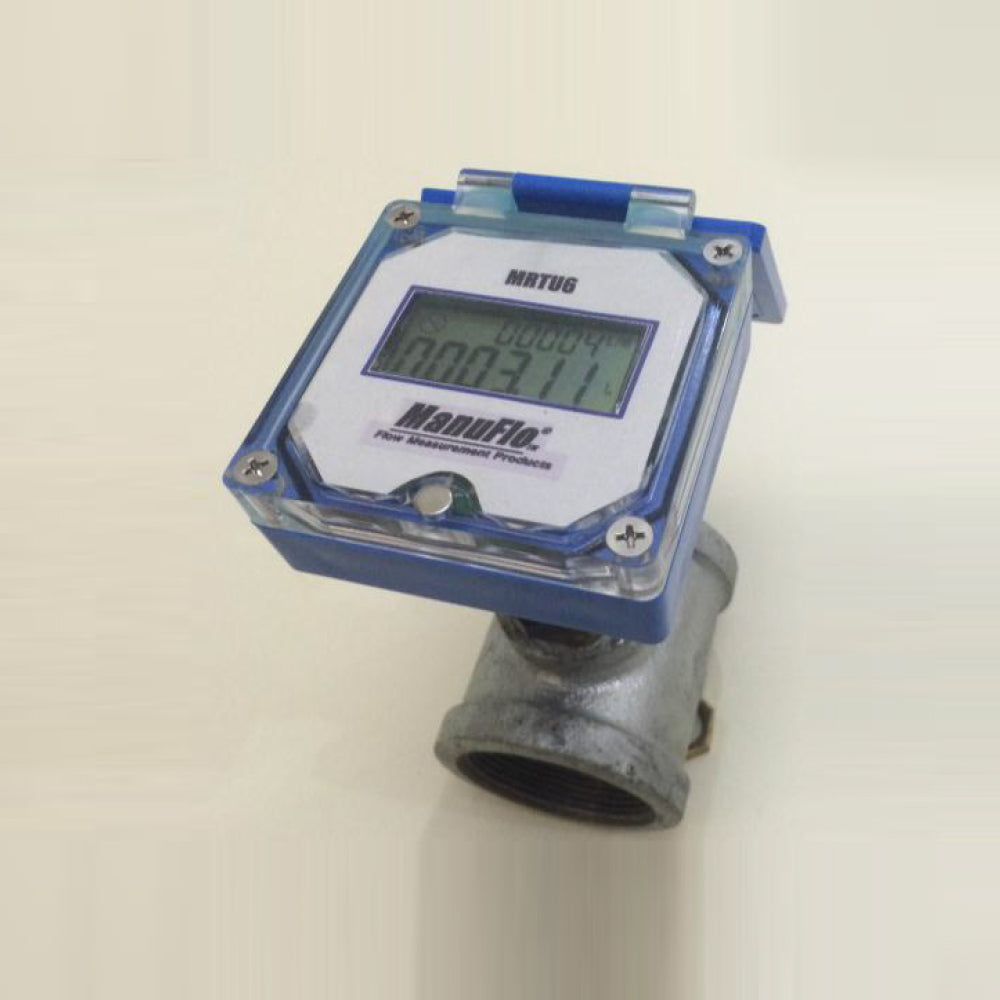

LCD dual display Flowrate / Totaliser (resettable) with integral mounted slip insertion universal-pipe-size adaptable RPFS-L rotor sensor flowmeter IP65 ABS-thermal housing.

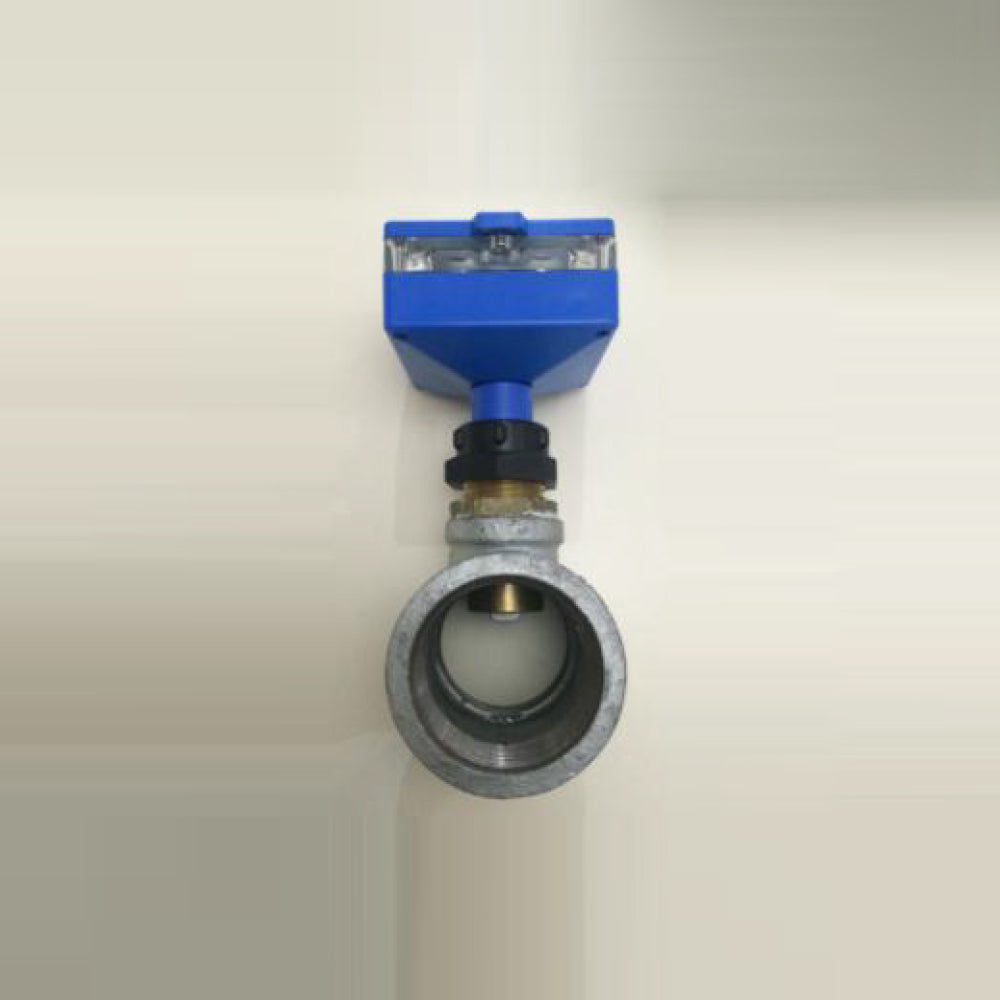

  • 1” 316 stainless steel Tee pipe adaptor with BSP F connections
  • Includes proprietary part BSPB slip adaptor to accept MRTU6 flowmeter
  • Flow range Litres/minute 20 to 250 L/min
  • Calibration certificate traceable to Australian National Standards = $165.00 + GST
View full details
  • Description

Features

  • 6 digit LCD resettable or non-reset totaliser (10mm high), 5 digit flowrate
  • Total in Litres or optional KiloLitres
  • Flowrate in LPM or optional LPS
  • Easy reset of total via flip top lid..
  • ± 2.5% accuracy, at 0.7 - 8.0 m/s flow velocity
  • Repeatability: ± 1.0%
  • Internal 3.6 v Lithium Battery (8-10+ year life).
  • Max. Operating Temp: 55 ºC
  • Max. Operating Pressure: 1100 kPa
  • With simple installation pipe fittings /adapters.
  • For pipe diameters from 20 to 500 mm
  • Optional pulse output, via M12 IP67 plugset
  • (live pulse even when lid closed)

New Features

  • Robust ABS-UV IP65 Display housing with 3M film cover protection
  • NEW Dual Hinged robust lid protects LCD from sunlight, with magnet secure function.
  • NEW slip insertion sensor design allows simple removal from pipeline if cleaning rotor
  • NEW Easier Access for re-calibration and User friendly smart 1 point re-calibration function –self calculation for a new k- factor.
  • NEW Optional External re-calibrate via Portable Device with RFID and EWM calibration software.
  • NEW Dual display: Rate + Reset Total 6-digit LCD (12mm high) counts in LITRES
