Digital Torque Meters with Selectable Unit and RS232 Output

$2,887.58
Excl GST: $2,625.07
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

HHTQ88-series

Calibration needed?

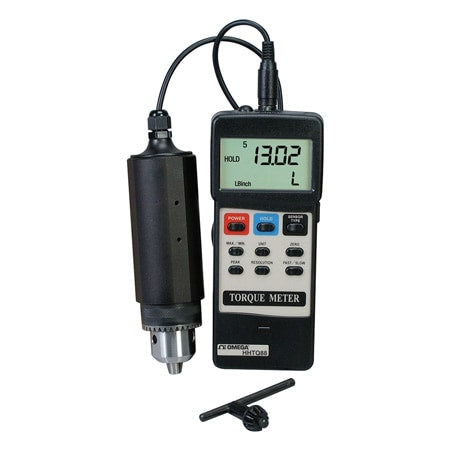

The HHTQ88 series are precision test instruments, with built-in 12 mm (0.5') chuck and chuck key, for automotive, automation, laboratories, and general industrial applications.
View full details
  • Description
The HHTQ88 is a precision test instrument for automotive, automation, laboratories, and general industrial applications. The unit comes complete with the torque sensor with built-in 12 mm (0.5') chuck and chuck key. Three selectable torque units (kgf-cm, lb-in, N-cm) give this instrument almost universal compatibility with all measuring systems. The HHTQ88 also has fast and slow sampling rates to fit most automation applications. The readings are easy to read, displayed in large 15 mm (0.6') high digits. The RS232 serial interface allows you to download data for use in your data logging or recording programs.

SPECIFICATIONS

Units: kgf-cm, lb-in, N-cm (N = Newtons)
Range: Up to 15 kgf-cm
Safe Overload: 150% of range
Functions: Auto off (after approx 20 min), reading hold, min and max
Accuracy: ±1.5% FS +5 digits, 23 ±5ºC, includes linearity, repeatabilityand hysteresis
Operating Temperature: 0 to 50ºC (32 to 122ºF)
Operating Humidity:<80% RH (non-condensing)
Sensor Chuck: 12 mm (0.5')
Power: 9 V alkaline battery (included)
Sampling Time:
Fast: Approximately 0.125 sec
Slow: Approximately 0.334 sec
Data Output: RS232 PC serial output
Meter Dimensions: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3')
Sensor Dimensions: 48 D x 160 mm L (1.9 x 6.3')
Meter Weight: 225 g (0.5 lb)
Sensor Weight: 665 g (1.5 lb)
Sensor Cable: 1 m (39')
