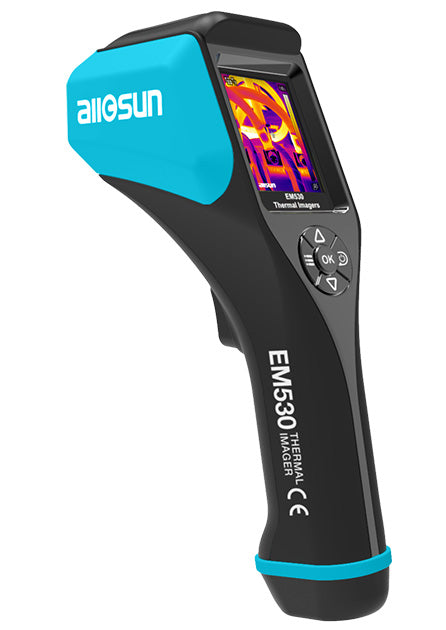

Digital Thermal Imager EM530

Taxes included. Shipping calculated at checkout.

SKU :

EM530

Calibration needed?
View full details
  • Description

Display: 2.4 inches, 320 × 240 pixels
Model: EM530 Thermal Imager

INTRODUCTION

This instrument is a handheld thermal imager, powered by 6 AA batteries or 7.5V AC.
All operations are via the buttons on the panel.
Temperature measurement range and color palette can be switched on the interface of the infrared image.

Thermal images and visible light images are stored on the internal 4GB memory and can be viewed on the device or transferred to a computer via USB.





Functions Model
Optics 33° × 33°
Dim 150 × 70 × 230 mm
Display resolution 240 × 320 Pixel
Emission level (max.) 1
Emission level (min.) 0.01
Temperature -20°C up to 550°C
Temperature resolution 0.1°C
IP rating IP54
Bolometer array 32 × 32 Pixel
Focus Fixed-focus
Interfaces Micro USB
Features
Basic accuracy 2%
Colour schemes 9
Memory units tf card
Frame rate 6
Power supply (details) 4 × AAA, 6 V DC


EM530 SPECIFICATIONS

Power Supply: 1.5V battery, AA × 4pcs
Dimensions: 231 × 150 × 70 mm
Weight: Approx. 397g (Including battery)
