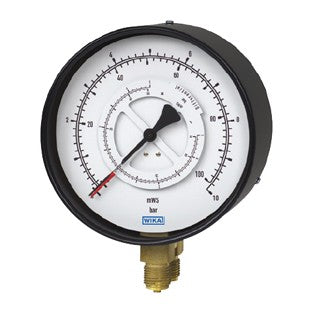

Diaphragm pressure gaugeStainless steel version (Price & availability on application)

Taxes included. Shipping calculated at checkout.

SKU :

press-product68

Calibration needed?
Design EN 837-3 Nominal size in mm 100, 160 Accuracy class 1.6 Scale ranges 0 ... 16 mbar to 0 ... 250 mbar (flange Ø 160 mm) 0 ... 400 mbar to 0 ... 40 bar (flange Ø 100 mm) or all other equivalent vacuum or combined pressure and vacuum ranges Pressure limitation Steady: Full scale value Fluctuating: 0.9 x full scale value Overpressure safety 40, 100 or 400 bar Permissible temperature Ambient: -20 ... +60 °C Medium: +100 °C maximum Temperature effect When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.8 %/10 K of full scale value Ingress protection IP 54 per EN 60529 / lEC 529
View full details
  • Description
  • Download Brochures

The Stainless Steel Diaphragm Pressure Gauge is engineered to provide precise and reliable pressure measurements in corrosive, industrial, and high-humidity environments. Its diaphragm mechanism offers high sensitivity and quick response to pressure changes, making it suitable for demanding applications where traditional Bourdon tube gauges may not suffice. Constructed from stainless steel, it provides long-term corrosion resistance and durability, ensuring accurate performance over time. Pricing and availability are provided upon request to accommodate specific ranges, sizes, and custom requirements.

Key Features:

Stainless steel construction for maximum corrosion resistance

Sensitive diaphragm mechanism for accurate pressure readings

Fast response to pressure fluctuations

Suitable for corrosive or high-humidity environments

Customizable ranges and configurations available on request

Durable and long-lasting design for industrial use
