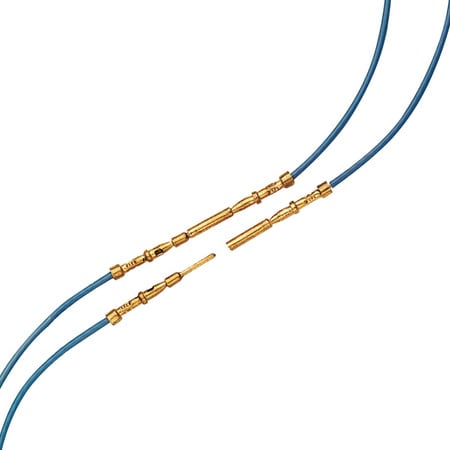

Crimp-Style Thermocouple Pin & Socket Contacts - Hollow Core

$329.80
Excl GST: $299.82
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

HPC-CONTACTS

Calibration needed?
Crimp-style contacts that are stamped from thermocouple alloy materials and color coded for easy identification. Intended for use with MTC connectors.
View full details
  • Description
  • Download Brochures
OMEGA™ push-in crimp-style contacts are manufactured from thermocouple alloy materials and are color-coded for easy identification. Contacts are crimp-terminated outside the connector assembly and inserted into the appropriate cavity by means of an insertion tool. They can be readily removed from the connector assembly using a special removal tool. Sealing plugs are available to seal unused positions in lieu of pin or socket.

Material Thermocouple Type
(ANSI Symbol)
Iron/Constantan J
CHROMEGA™ /ALOMEGA K
Copper/Constantan T
CHROMEGA™/Constantan E


Pins
(Male)		 Sockets
(Female)		 Alloy Type Coding
Color Letter
HPC-IR-P HPC-IR-S Iron (+) BLK M
HPC-CO-P HPC-CO-S Constantan (–) YEL N
HPC-CU-P HPC-CU-S Copper (+) RED C
HPC-CH-P HPC-CH-S CHROMEGA™(+) WHT P
HPC-AL-P HPC-AL-S ALOMEGA™ (–) GRN R
HPC-AU-P HPC-AU-S *Gold-Plated
(Uncompensated)		 Color
Bands†
* For use with non-thermocouple wire in same body.
Grommets available. Consult Sales Department for price and delivery.
† Pins have red, yellow and brown color bars; sockets have red, blue and black color bars.
