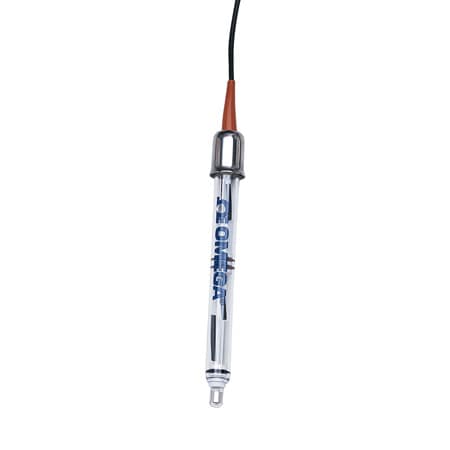

Combination Style Industrial pH and ORP Electrodes

Combination Style Industrial pH and ORP Electrodes

$575.32
Excl GST: $523.02
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

ORE542110-532910-63613-Series

Calibration needed?
Twist Lock Industrial Combination electrode features a non-fouling annular ceramic junction and an electrode housing of PVDF construction with 316SS locking pins.
View full details
  • Description
  • Download Brochures
Twist Lock Industrial Electrodes and Adaptors Specially designed to withstand harsh industrial environments, the twist lock-style combination electrode features a non-fouling annular ceramic junction and an electrode housing of PVDF construction with 316SS locking pins. Dual "O" rings (1 EPR, 1 FKM) are supplied to prevent process contact with potting epoxy. A choice of PVC or PVDF adaptors is available with 3/4" or 1" NPT threading.

Rebuildable Submersible Electrode Assemblies OMEGA™ Submersible Electrode Assemblies are intended for use in industrial and process ORP/pH measurement applications. For versatility, modular construction allows quick removal of the sealed combination electrode and easy mounting onto 3/4" pipe. The CPVC or PVDF housings permit use in hostile environments. The electrodes utilize annular nonfouling reference junctions.

Electrodes
Model No. pH
Range		 Temp
°C(°F)		 R Megohms
at 25°C/77°F		 Notes
PHE-5321-10 0 to 13 -5 to 110 (23 to 230) 50 General purpose
PHE-5421-10 0 to 13 -5 to 110 (23 to 230) 50 Double junction
PHE-5322-10 0 to14 0 to 110 (32 to 230) 200 High pH
ORE-5421-10 ORP Platinum -5 to 110 (23 to 230) — ORP general purpose Pt
ORE-5329-10 ORP Gold -5 to 110 (23 to 230) — ORP with cyanide present Av

Pipe Tees
Model No. Fitting Material Max. Temp.
PHEH-34TP 3/4" MNPT CPVC 66°C/151°F
PHEH-1TP 1" MNPT CPVC 66°C/151°F
PHEH-34TK 3/4" MNPT PVDF 110°C/230°F
PHEH-1TK 1" MNPT PVDF 110°C/230°F

Twist Lock Adaptors
Model No. Fitting Material Max. Temp.
PHEH-34AP 3/4" MNPT CPVC 66°C/151°F
PHEH-1AP 1" MNPT CPVC 66°C/151°F
PHEH-34AK 3/4" MNPT PVDF 110°C/230°F
PHEH-1AK 1" MNPT PVDF 110°C/230°F

Electrodes
Model No. Length
mm (in)		 Dia
mm (in)		 pH
Range		 Temp
°C		 R Megohms
at 25°C/77°F		 Notes
PHE-6361-3 80 (3.13) 12 (.47) 0 to 13 -5 to 100 50 General purpose
PHE-6362-3 80 (3.13) 12 (.47) 0 to 14 0 to 110 200 High pH
PHE-6461-3 80 (3.13) 12 (.47) 0 to13 -5 to 100 50 Double junction
PHE-6462-3 80 (3.13) 12 (.47) 0 to 14 0 to 110 200 Double junction high pH
ORE-6361-3 80 (3.13) 12 (.47) ORP Pt -5 to 110 — ORP general purpose Pt
ORE-6461-3 80 (3.13) 12 (.47) ORP Pt -5 to 110 — ORP double junction Pt
ORE-6469-3 80 (3.13) 12 (.47) ORP Gold -5 to 110 — ORP dbl. junc. for appl.
w/cyanide (Au)
*Specify type of temperature sensor. See To Order guide below. Order electrode and housing separately.

Submersion Assemblies
Model No. Length Dia. Material Temp °C
PHEH-63P-3 3' 3/4" CPVC -5 to 80
PHEH-63K-3 3' 3/4" PVDF -5 to 110

Replacement Electrode Holders
Model No. Material Temp °C
PHEH-64P CPVC -5 to 80
PHEH-64K PVDF -5 to 110


Please download PDF file for full product specifications and a complete list of available models.
