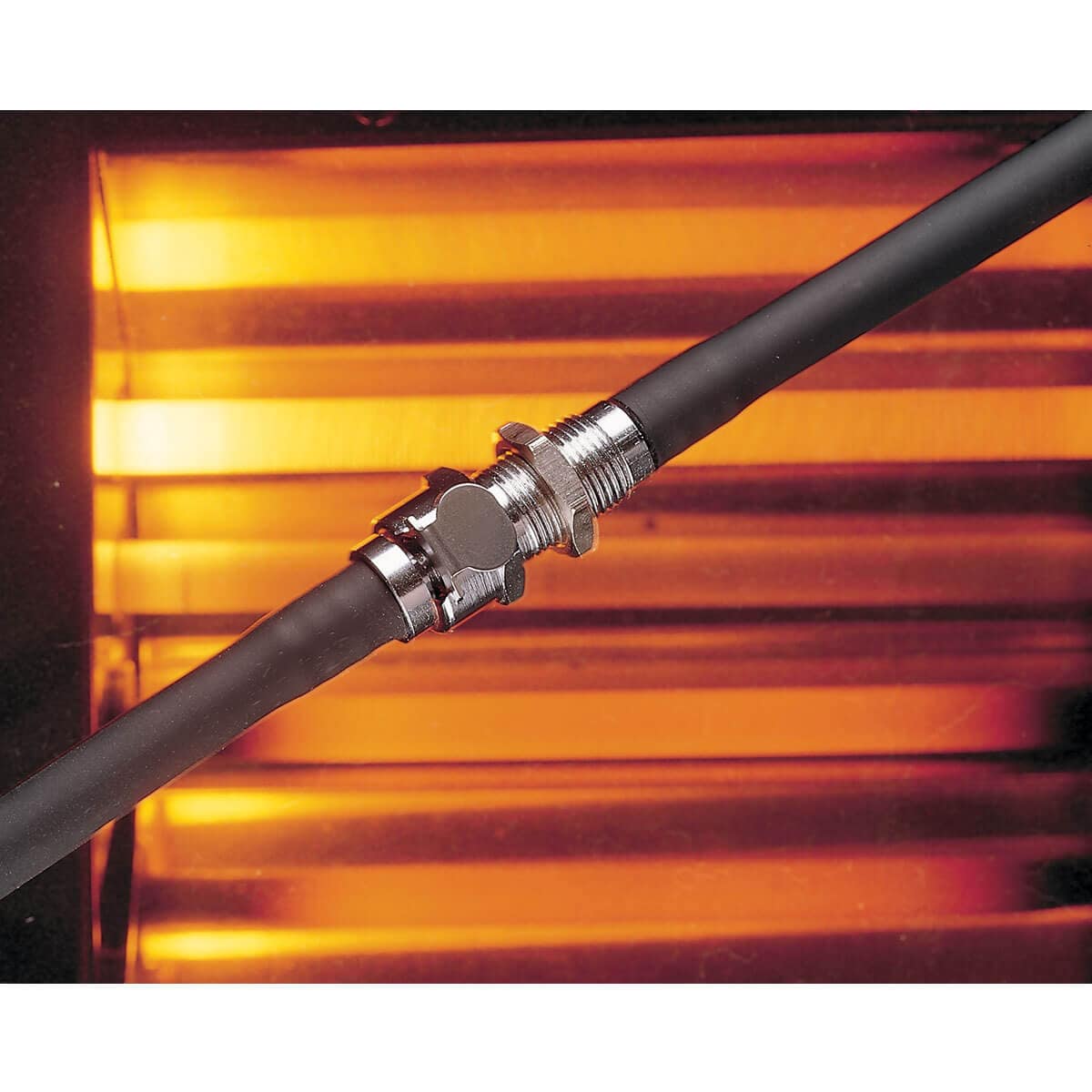

Chrome-Plated Brass Mechanically Keyed Quick Couplings

$88.05
Excl GST: $80.05
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

FTMC-Series

Calibration needed?
Keyed OMEGA quick couplings are designed for small flexible hose and plastic tubing applications which require positive mechanical connections and non-interchangeable lines.
View full details
  • Description
  • Download Brochures
Keyed OMEGA™ quick couplings are specifically designed for small flexible hose and plastic tubing applications which require positive mechanical connections and non-interchangeable lines. They provide economical, keyed, high reliability, fool proof connections that are compatible with lower pressure and size requirements for instrumentation applications.

Warning: Standard thermoplastic and chrome-plated brass quick disconnects cannot be interchanged with keyed quick disconnect couplings because they will leak.

1/8' Flow - COUPLING BODIES

Pipe Thread
MALE THREAD STRAIGHT THRU
MODEL NO.		 SHUTOFF
MODEL NO.
1/8' NPT FT-MC10-02-K* FT-MCD10-02-K*
1/4' NPT FT-MC10-04-K* FT-MCD10-04-K*

Panel Mount with Hose Barb
TUBING STRAIGHT THRU
MODEL NO.		 SHUTOFF
MODEL NO.
1/8' ID FT-MC16-02-K* FT-MCD16-02-K*
1/4' ID FT-MC16-04-K* FT-MCD16-04-K*

Panel Mount Ferruless Polytube Fitting†, PTF
TUBING STRAIGHT THRU
MODEL NO.		 SHUTOFF
MODEL NO.
1/4' OD x .170' ID FT-MC12-04-K* FT-MCD12-04-K*


1/8' Flow - INSERTS

Pipe Thread
MALE THREAD STRAIGHT THRU
MODEL NO.
1/8' NPT FT-MC24-02-K*

Hose Barb
TUBING STRAIGHT THRU
MODEL NO.
1/8' ID FT-MC22-02-K*
1/4' ID FT-MC22-04-K*

Ferruless Polytube Fitting†, PTF
TUBING STRAIGHT THRU
MODEL NO.
1/4' OD x .170' ID FT-MC20-04-K*
†PTF fittings are designed for semi-rigid tubing i.e. polyethylene, nylon, etc., and polyurethane tubing.
