Capsule Pressure (Price & availability on application)
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:press-product24
Design
EN 837-3
Nominal size in mm
50, 63
Accuracy class
1.6
Scale ranges
NS 50: 0 ... 60 mbar to 0 ... 600 mbar
NS 63: 0 ... 25 mbar to 0 ... 600 mbar
or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation
Steady: full scale value
Fluctuating: 0.9 x full scale value
Operating temperature
Ambient: -20 ... +60 °C
Medium: +100 °C maximum
Temperature effect
When the temperature of the measuring system deviates from the reference temperature (+20 °C):
max. ±0.6 %/10 K of full scale value
Ingress protection
IP 32 per EN 60 529 / lEC 529
- Description
- Download Brochures

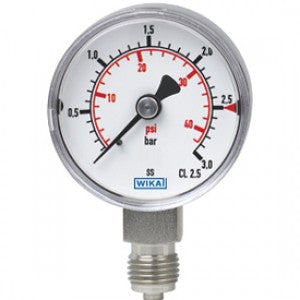

This Capsule Pressure Gauge features a compact capsule (diaphragm capsule or specialized low-pressure sensing element) enclosed in a durable housing. Designed for low pressure or vacuum measurement, the capsule mechanism provides very fine sensitivity. Pricing and delivery are tailored based on range, material, and mounting configuration.
Key Features:
High sensitivity for low pressure or vacuum applications
Compact capsule sensor construction
Customizable options for material, connection, and range
Precise dial or analog output display
Built to be stable against overloads and environmental stress
×
