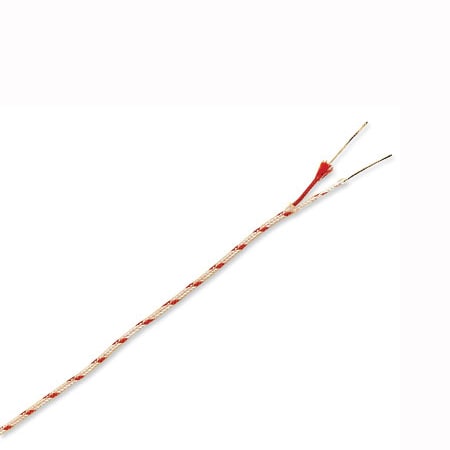

C Type Thermocouple Duplex Extension Wire

Compensating Extension Wires for W5%Re/W26%Re Thermocouples. Alloy types 405/426.
Color Code:
For EXXG wire, Positive Wire, White/Red Trace; Negative Wire, Red; Overall, White/Red Trace
For EXX* wire, Positive Wire, White; Negative Wire, White/Red Trace; Overall, White/Red Trace

Model No.	Insulation	AWG No.	Type Wire	Insulation		Max. Temp		Nominal Size (mm)	Wt.† kg/300m
				Conductor	Overall	°F	°C
EXXC-C-24 EXXT-C-24 EXXL-C-24	Ceramic*	24 24 24	Solid Solid Solid	Nextel Ceramic Nextel Ceramic Nextel Ceramic	Nextel Ceramic Nextel Ceramic Nextel Ceramic	392 392 392	200 200 200	2.92 x 4.44 2.23 x 3.35 1.98 x 2.95	5.4 4.9 4.5
EXGG-C-24	Glass	24	Solid	Glass Braid	Glass Braid	392	200	1.27 x 2.03	3.1

The XC is the standard braid, XT is a tight braid and XL is a light duty braid; the three types of braid affect only the amount of Nextel used in manufacturing.
*Has color tracers on jacket and conductors
†Weight of spool and wire, rounded up to next highest lb. (does not include packing material).
