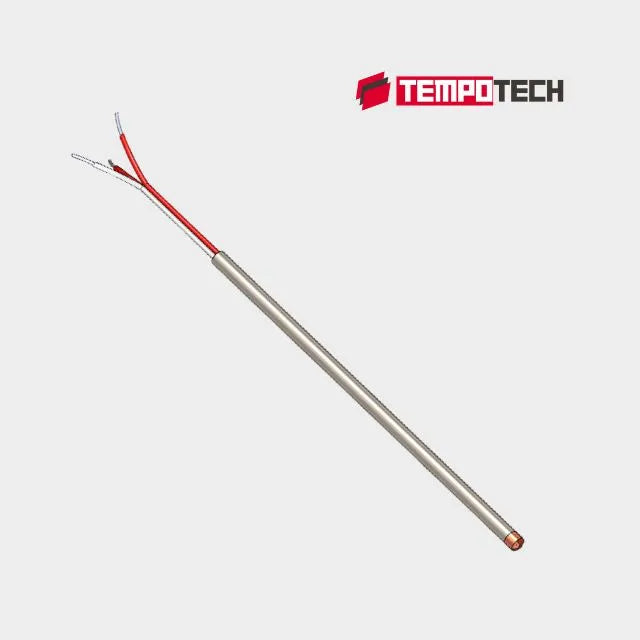

BRTD- Electrically Isolated Tip Bearing RTD Probe Copper Tip-Pt100 Ohms

Taxes included. Shipping calculated at checkout.

View full details
  • Description

BRTD Tip Sensitive Copper Tip Bearing RTD with Electrically Isolated Tip is a resistance temperature detector specifically designed for bearing temperature or other rotating shaft temperatures. The copper tip probe is inserted directly into drilled holes (such as bearing housing, machine components) or the process. The copper tip design allows small changes in temperature to be detected quickly, helping to avoid major damage to the bearing or shaft. TempoTech bearing RTD comes with an electrically isolated tip, making it suitable for use in high-voltage motors and electrically heated bearings. The electrically isolated tip helps to prevent any signal interference caused by electric currents.

Key Features:

  • Temperature Range: -50° C to +250°C
  • Element Type : Platinum 100,
  • Std. class “A” accuracy for platinum RTDs and class “B” accuracy for Nickle RTDs
  • PFA Insulated Lead Wire
  • Cut to length construction for flexibility.
  • Tip sensitive copper tip for a fast response.
  • Tested per IEC 60751.
  • Available with Isolated tip.
  • Can be purchased just the element or with all the accessories for onsite installation



Application Note

Electrically Isolated Tip Sensitive Bearing RTDs are designed for the application where a quick response is required. Our tip sensitive RTD comes with the copper tip for faster response and it offers excellent resistance to vibration and shock. A common application for tip sensitive RTDs is bearing temperature, air duct temperature and other applications with or without thermowells.

Accessories

  • Connection Head
  • Ceramic Terminal Block
  • Spring Loaded Hex Bushing
  • Thermowell

Technical Specification

  • Temperature Rating : -50 to 250°C
  • Insulation resistance: 1000 megaohms @ 500 VDC for 1 minute
  • Response time : <5 sec (in moving water @ 1 m/Sec)
  • Sheath Material : 316 Stainless steel
  • Lead wire : 24 AWG. nickel plated copper with PFA insulation
  • Electrically Isolated Tip
