Bourdon tube pressure (Price & availability on application)

Taxes included. Shipping calculated at checkout.

SKU :

press-product18

Calibration needed?
Design EN 837-1 Nominal size in mm 100, 160 Accuracy class 1.0 Scale ranges 0 ... 0.6 to 0 ... 1,000 bar or all other equivalent vacuum or combined pressure and vacuum ranges Pressure limitation Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value Permissible temperature Ambient: -40 … +60 °C Medium: +80 °C maximum Temperature effect When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale value Ingress protection IP 54 per EN 60529 / lEC 529
View full details
  • Description
  • Download Brochures

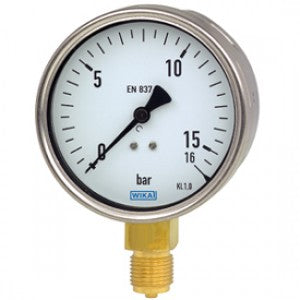

The Bourdon Tube Pressure Gauge, lower-mount standard design, provides analog pressure readings in a rugged mechanical form. Its lower mount makes it well-suited for panel or pipe side installations where visibility and alignment are key. With robust internals and reliable Bourdon tube mechanism, it delivers consistent performance across a wide range of pressures. Pricing and specific availability are tailored per application.

Key Features:

Lower-mount style for flexible installation in panels or piping

Traditional Bourdon tube sensing mechanism—proven and reliable

Clear dial face for ease of reading

Durable case and internals designed for industrial conditions

Custom dial ranges and materials available upon request

Applications:

Hydraulic and pneumatic systems for monitoring pressure

Panel and instrumentation setups requiring visible pressure readouts

OEM machinery, pumps, boilers, compressors

Industrial plants needing rugged analog gauges
