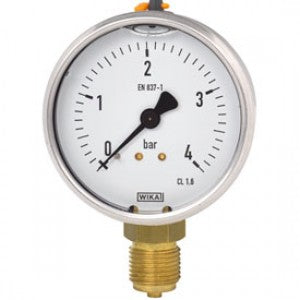

WIKA Bourdon Tube Pressure Gauge – 80mm

Taxes included. Shipping calculated at checkout.

SKU :

press-product11

Calibration needed?
Design EN 837-1 Nominal size in mm 40, 80, 100 Accuracy class NS 40: 2.5 NS 80, 100: 1.6 Scale ranges 0 ... 1 to 0 ... 400 bar or all other equivalent vacuum or combined pressure and vacuum ranges Pressure limitation Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: Full scale value Permissible temperature Ambient: -20 ... +60 °C Medium: +60 °C maximum Temperature effect When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span Ingress protection IP 65 per EN 60529 / lEC 529
View full details
  • Description
  • Download Brochures

This Bourdon Tube Pressure Gauge offers reliable, analog pressure readings with classic mechanical simplicity. The lower-mount configuration makes it ideal for pipe-side or panel installations, providing clear visibility of the dial. Built with rugged casing and precision internals, it withstands tough industrial conditions. Since price and lead-time depend on specifications like range and material, you’ll get a solution tailored to your exact needs.

Key Features:

Bourdon tube mechanism for durable, mechanical pressure measurement

Lower-mount connection for convenient installation in panels or piping

Clear analog dial for easy, immediate reading

Robust design for industrial environments

Customisable options in range, material, and scale

Applications:

Pressure monitoring in pumps, compressors, and pipeline systems

Hydraulic and pneumatic control panels

Maintenance and process systems where electrical power may be limited or not preferred

OEM installations where customized dial ranges or materials are needed
