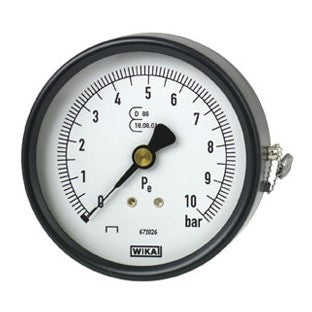

Bourdon tube pressure (Price & availability on application)

Taxes included. Shipping calculated at checkout.

SKU :

SKU:press-product5

Calibration needed? Yes (office will call you to confirm the cost) No

Nominal size in mm 63 and 80 Accuracy class pm ≤ 4 bar: ± 0.08 bar 4 bar < pm ≤ 10 bar: ± 0.16 bar pm > 10 bar: ± 0.25 bar (pm ... measured pressure) Error limits are met within a temperature range between 15 °C and 25 °C Scale ranges 0 ... 4 bar 0 ... 10 bar 0 ... 12 bar (only NS 80) Pressure limitation Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value Operating temperature Ambient: -20 … +60 °C Medium: +40 °C maximum Storage: -40 … +70 °C Temperature effect When the temperature of the measuring system deviates from the reference temperature range (-10 ... +40 °C): pm ≤ 4 bar: 0.1 % of 4 bar 4 bar < pm ≤ 10 bar: 0.05 % of 10 bar pm > 10 bar: 0.05 % of the full scale value (pm ... measured pressure) Ingress protection IP 44 per EN 60529 / lEC 529

View full details

Description
Download Brochures

The Bourdon Tube Pressure Gauge employs a proven mechanical mechanism to deliver accurate pressure readings in industrial systems. The internal Bourdon tube flexes under pressure and translates motion to an analog dial, eliminating the need for power. These gauges are well suited for local pressure monitoring in hydraulic, pneumatic, and process systems. Because they can be customized in materials, ranges, and connection types, price and availability are offered on request.
