Bourdon tube pressure (Price & availability on application)
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:press-product2
Design
ISO 5171
Nominal size in mm
40, 50, 63
Accuracy class
2.5
Scale ranges
Welding engineering standard ranges for oxygen and acetylene to ISO 5171, as well as 0 ... 1 to 0 ... 400 bar to EN 837-1
Pressure limitation
Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
Permissible temperature
Ambient: -20 ... +60 °C
Medium: +60 °C maximum
Temperature effect
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span
- Description
- Download Brochures

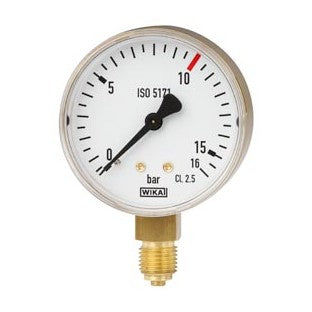

The Bourdon Tube Pressure Gauge is a mechanical instrument designed for measuring high-pressure applications. It utilizes a curved tube that straightens when pressure is applied, providing a direct reading on the dial. The gauge is known for its durability and accuracy, making it suitable for industrial processes, hydraulic systems, and pneumatic applications.
Key Features:
Designed for measuring high-pressure applications
Utilizes a curved tube mechanism for direct pressure readings
Durable and accurate
Suitable for industrial processes, hydraulic systems, and pneumatic applications
Calibration-ready for immediate deployment
×
