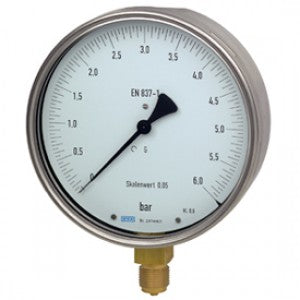

Bourdon tube pressure gaugeTest gauge series, class (Price & availability on application)

Taxes included. Shipping calculated at checkout.

SKU :

press-product21

Calibration needed?
Design EN 837-1 Nominal size in mm 160 Accuracy class 0.6 Scale ranges 0 ... 0.6 to 0 ... 600 bar or all other equivalent vacuum or combined pressure and vacuum ranges Adjustment medium ≤ 25 bar: Gas > 25 bar: Liquid Pressure limitation Steady: Full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value Permissible temperature Ambient: -40 … +60 °C Medium: +80 °C maximum Temperature effect When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale value Ingress protection IP 54 per EN 60529 / lEC 529
View full details
  • Description
  • Download Brochures

The Series Class Bourdon Tube Pressure Test Gauge is built for accurate, durable pressure monitoring in calibration, industrial, and laboratory settings. It employs a Bourdon tube mechanism with precision internals to deliver consistent measurement, designed for test or reference use. Options for different class accuracies, pressure ranges, and sizes make it versatile for use in hydraulic, pneumatic, and heavy industrial systems.

Key Features:

Bourdon tube mechanism for precise pressure measurement

Available in multiple classes of accuracy, suitable for test / calibration uses

Wide range of pressure scales (low to high) selectable per application

Rugged construction to survive harsh industrial environments

Clear, high-contrast dial for readability
