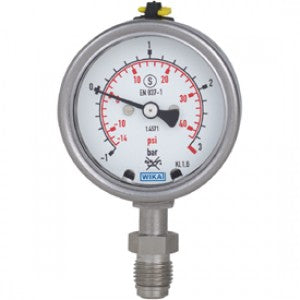

Bourdon tube pressure gaugeStainless steel, safety version, high overpressure (Price & availability on application)

Design Safety pattern (Solidfront) referring to EN 837-1 Nominal size 100 and 160 mm Measuring ranges and overpressure ranges Measuring range in bar Overpressure range up to ... bar -1 ... 0 3 0 ... 0.6 2.5 0 ... 1 4 0 ... 1.6 6 0 ... 2.5 10 0 ... 4 16 0 ... 6 25 0 ... 10 40 0 ... 16 60 0 ... 25 80 0 ... 40 100 Accuracy class Measuring range: 1.0 The measuring range end is marked by a triangle Pressure limitation Steady: end value of measuring range Fluctuating: 0.9 x end value of measuring range Short time: Overpressure range Permissible temperature Ambient: -40 ... +60°C without liquid filling -20 ... +60 °C gauges with glycerine filling (Model 233.36 ) Medium: +200 °C maximum without liquid filling +100 °C maximum with liquid filling (Model 233.36 ) Temperature effect When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 % / 10 K of full scale value Ingress protection IP 65 per EN 60529/IEC 529
