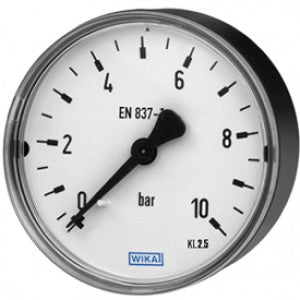

Bourdon tube pressure gaugeBack mount, standard (Price & availability on application)
Bourdon tube pressure gaugeBack mount, standard (Price & availability on application)
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:press-product3
Design
EN 837-1
Nominal size in mm
40, 50, 63, 80 and 100
Accuracy class
2.5
Scale ranges
0 ... 0.6 to 0 ... 400 bar
or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation
Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
Permissible temperature
Ambient: -20 ... +60 °C
Medium: +60 °C maximum
Temperature effect
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span
- Description
- Download Brochures
Design
EN 837-1
Nominal size in mm
40, 50, 63, 80 and 100
Accuracy class
2.5
Scale ranges
0 ... 0.6 to 0 ... 400 bar
or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation
Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
Permissible temperature
Ambient: -20 ... +60 °C
Medium: +60 °C maximum
Temperature effect
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span
×
