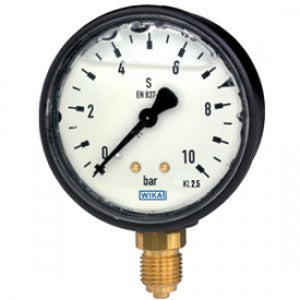

Bourdon tube pressure gauge,liquid filling, plastic (Price & availability on application)

Taxes included. Shipping calculated at checkout.

SKU :

press-product10

Calibration needed?
Design EN 837-1 Nominal size in mm 40, 50 and 63 Accuracy class 2.5 Scale ranges 0 ... 1 to 0 ... 400 bar or all other equivalent vacuum or combined pressure and vacuum ranges Pressure limitation Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: Full scale value Permissible temperature Ambient: -20 ... +60 °C Medium: +60 °C maximum Temperature effect When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span Ingress protection IP 65 per EN 60529 / lEC 529
View full details
  • Description
  • Download Brochures

This Bourdon Tube Pressure Gauge comes with liquid-filled internals and a plastic casing, designed to dampen vibration and pulsation effects while providing reliable analog pressure readings. Commonly used in hydraulic and pneumatic systems, the liquid filling extends gauge life under dynamic pressure conditions. Price and availability are provided upon request to accommodate custom configurations.

Key Features:

Bourdon tube mechanism for rugged analog pressure measurement

Liquid filling to reduce needle flutter under vibration or pulsating pressure

Plastic casing for lightweight, corrosion-resistant protection

Clear dial with standard scale and pointer

Custom options available depending on range or casing specifications

Applications:

Pressure monitoring in hydraulic or air systems with pulsation

Agricultural or mobile equipment where lightweight gauges are preferred

General industrial systems needing durable but cost-sensitive instruments

OEM or replacement applications where specific dial sizes or ranges are needed
